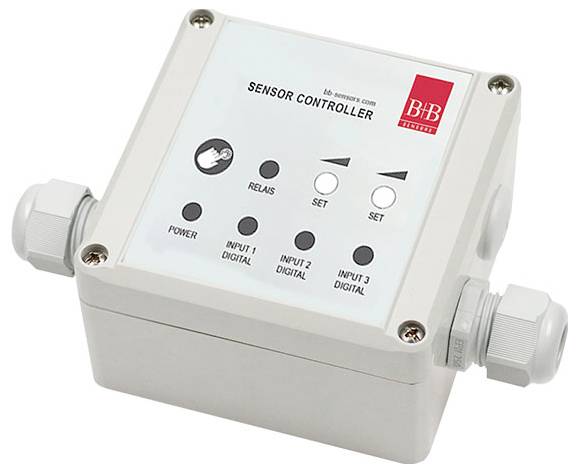

B + B Thermo-Technik 0557 0005-02 230V/AC Switch Module In Housing With Operator Panel Switching module 230 V / AC in th
EAN:
Part number:
Item no:
Product type
Universal switchboard
Operating voltage
230 V AC
Type
0557 0005-02
Operating current
20 mA
Switching voltage (max.)
230 V AC
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
14-day return policy included
Highlights & Details
B + B Thermo-Technik 0557 0005-02 230V/AC Switch Module In Housing With Operator Panel Switching module 230 V / AC in the enclosure with control panel
- Direct connection of NTC, LDR, etc.
- For industrial sensors 0 - 1 V/10 V/20 mA
- Configurable operating time relay 10 s - 10 min
Our service for you
Technical specifications
- Power consumption: 5 VA
- Product type
Universal switchboard
- Type
0557 0005-02
- Operating voltage
230 V AC
- Operating current
20 mA
- Switching voltage (max.)
230 V AC
- Switching current (max.)
5 A
- Content
1 pc(s)
- Length
100 mm
- Width
100 mm
- Height
60 mm
- Dim
(L x W x H) 100 x 100 x 60 mm
- RoHS-compliant
Yes
- Type
Switching module 230 V / AC in the enclosure with control panel
- Type
CON-SENSW-GEH230V
- Operating voltage
230 V AC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 156530 B + B Thermo-Technik 0557 0005-02 230V/AC Switch Module In Housing With Operator Panel Switching module 230 V / AC in th
Description
Switch module (two-step controller) for almost all sensors and detectors. The input can be connected to a wide variety of sensors, depending on the area of use. Suitable sensors: The sensors are preassembled with a 1 m lead, Western connectors and cable gland. Dew point sensor (condensation water monitor): Detects the risk of condensation before it occurs. Humidity monitor for bath/shower, external walls, chilled ceilings, shop windows, etc. Conductance sensor: For monitoring water quality (ion content) or fill level, as a foam sensor, etc. Room humidity sensor: With sintered protective cap for controlling the relative humidity in greenhouses, terrariums, bathrooms, switch cabinets, etc. Temperature sensor -40 to +80 °C. In a stainless steel sensor tube, diameter 6 x 30 mm, or as a pressure-resistant screw-in sensor with M10 thread. Light sensor 50 - 2000 Lux: Weather-resistant, for indoor and outdoor installation.
Features
- Input with AC evaluation (conductance)
- Configurable operating time relay 10 s - 10 min
- Three potentiometers for adjusting the switching thresholds and hysteresis
- 6 LEDs for operating status display
- Switching polarity and operating time relay can be coded via plug-in jumpers
- Power relay with two-way contact
- Universal analogue input for resistive sensors
- Direct connection of NTCs, PTCs, LDRs or industrial sensors 0 - 1/5/10 V, 0 - 20 mA, etc.
- Second input for electrolytic sensors such as dew point and humidity sensors, level electrodes, water detectors, rain sensors, building humidity sensors, etc. (operating principle via AC impedance analysis)
- Third input for reed contacts, level switches, alarm contacts, etc.
Scope of delivery
- Supplied in housing with control panel and cable glands, sensors not included.
