Name: B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1191-011 0 bar up to 60 bar ISO 4400 square connector
Brand: B + B Thermo-Technik
SKU: 3089280
Availability: InStock

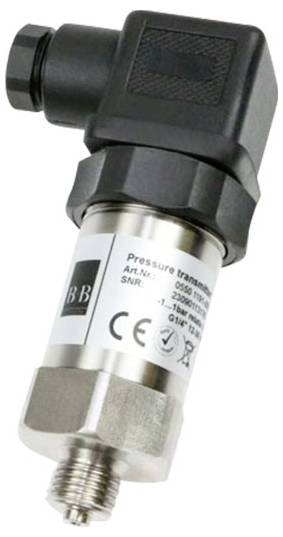

A stainless steel pressure transducer with a black right-angle electrical connector and threaded metal tip, shown on a white background.

Annotated technical drawing of a right-angle industrial fitting, showing overall size, 49 mm top length, 93.5 mm height, 27 mm diameter, and G1/4 inch threaded end.

1/2

Image similar

Product type

Pressure transducer

Connector

ISO 4400 square connector

Model

Relative pressure

Pressure reading range (max.)

60 bar

Max. operating voltage

36 V DC

Datasheet (PDF)

Fast track dispatch on Fri 23 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 124.99 / piece)

€ 124.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Pressure transmitter with DIN-Square connector

High-quality stainless steel housing; very sturdy construction

Technical specifications

Output signal, 0…10 V, burst pressure, 180 bar, designation, Pressure transmitter stainless steel, pressure measuring type, relative pressure, operating temperature, -20...+80 °C, Electrical connection, 4-pin industrial plug, DIN 43650, EMC emission, EN 61000-6-3: 2011, EMC immunity, EN 61000-6-1: 2007, pressure measuring range, 0...60 bar, process connection, G1/4", residual error linearity/hysteresis, <±0.4% FS, protection class, IP65, power supply, 12...36 V DC/ 5 mA, temperature coefficient, TCO < ±0.015 % FS/K; TCG < ±0.010 % FS/K, material housing, stainless steel 1.4305, material, sensor: ceramic measuring cell

Product type: Pressure transducer

Type: 0550 1191-011

Connector: ISO 4400 square connector

Model: Relative pressure

Outputs: Voltage (analogue)

Output signal (min.): 0 V

Output signal (max.): 10 V

Accuracy: 0.4 %

Pressure reading range (min.): 0 bar

Pressure reading range (max.): 60 bar

Pressure reading range: 0 bar up to 60 bar

Min. operating voltage: 12 V DC

Max. operating voltage: 36 V DC

Operating voltage: 12 - 36 V DC

Operating current: 5 mA

Burst load: 180 bar

: IP65

Min. temperature: -20 °C

Max. temperature: 80 °C

RoHS-compliant: Yes

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3089280 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1191-011 0 bar up to 60 bar ISO 4400 square connector

User & Safety Instructions

User & Safety Instructions 3089280 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1191-011 0 bar up to 60 bar ISO 4400 square connector

Description

The pressure sensors with Hirschmann plugs are Ideal for measuring static and dynamic relative pressures in liquids or gases.

This text is machine translated.

Description

The pressure sensors with Hirschmann plugs are Ideal for measuring static and dynamic relative pressures in liquids or gases.
