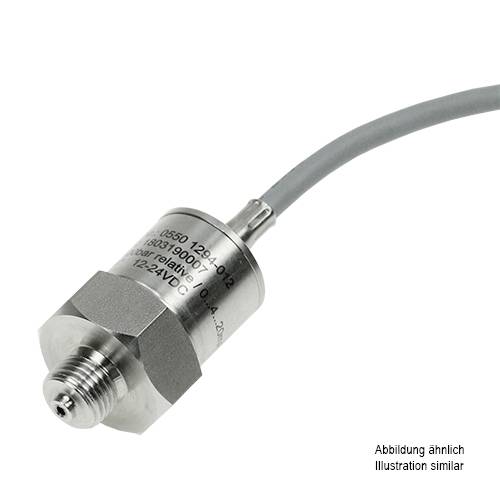

Image similar
Image similar
B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1192-009 25 bar (max) Cable
EAN:
Part number:
Item no:
Product type
Pressure transducer
Connector
Cable
Model
Relative pressure
Pressure reading range (max.)
25 bar
Max. operating voltage
36 V DC
Datasheet (PDF)
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
14-day return policy included
Highlights & Details
Pressure transmitter with 2m-cable
- High-quality stainless steel housing; very sturdy construction
Technical specifications
- Output signal, 0…10 V, burst pressure, 75 bar, designation, Pressure transmitter stainless steel, pressure measuring type, relative pressure, operating temperature, -20...+80 °C, Electrical connection, cable 2 m, EMC emission, EN 61000-6-3: 2011, EMC immunity, EN 61000-6-1: 2007, measuring range pressure, 0...25 bar, process connection, G1/4", Residual error linearity/hysteresis, <±0.4% FS, protection class, IP65, Power supply, 12...36 V DC/ 5 mA, temperature coefficient, TCO < ±0.015 % FS / K ; TCG < ±0.010 % FS / K, material housing, stainless steel 1.4305, material, sensor: ceramic measuring cell
- Product type
Pressure transducer
- Type
0550 1192-009
- Connector
Cable
- Cable length
2 m
- Model
Relative pressure
- Outputs
Voltage (analogue)
- Output signal (min.)
0 V
- Output signal (max.)
10 V
- Pressure reading range (max.)
25 bar
- Pressure reading range
25 bar (max)
- Min. operating voltage
12 V DC
- Max. operating voltage
36 V DC
- Operating voltage
12 - 36 V DC
- Operating current
5 mA
- Burst load
75 bar
IP65
- Min. temperature
-20 °C
- Max. temperature
80 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3089517 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1192-009 25 bar (max) Cable
User & Safety Instructions
User & Safety Instructions 3089517 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1192-009 25 bar (max) Cable
Description
The pressure sensors with 2m connection cable are Ideal suitable for measuring static and dynamic relative pressures in liquids or gases.
