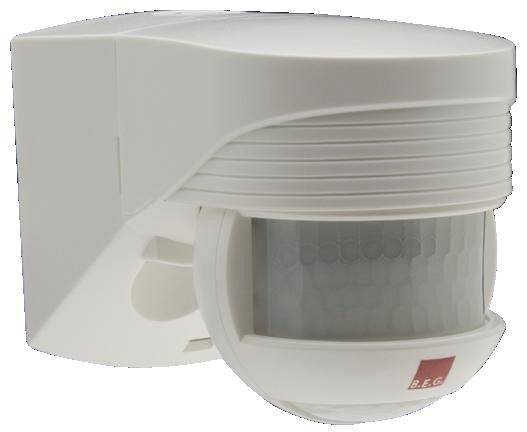

B.E.G. Brück 91002 Structure, Surface-mount Motion detector 200 ° Relay White IP54
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Beg 91002 LC-Click-N-200-white
- With sneak-by guard
- Movable ball head
- Simple mounting through plug base
Technical specifications
- Product type
Motion detector
- Detection angle
200°
12 m
- Used at
Outdoors
Indoors
- Mounting type
Structure
Surface-mount
- Operating voltage
110 V
240 V
- Contact type
Relay
- Switching capacity
1000 W
- Switching capacity (LED)
200 W
- Standby current consumption
0.4 W
- Twilight settings
2 - 2000 lx
- Time settings
4 s - 20 min
- Factory colour
White
IP54
- Operating temperature
-25 °C - +50 °C
- Length
103 mm
- Width
78 mm
- Height
80 mm
- Dim
(L x W x H) 103 x 78 x 80 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2150076 B.E.G. Brück 91002 Structure, Surface-mount Motion detector 200 ° Relay White IP54
User & Safety Instructions
User & Safety Instructions 2150076 B.E.G. Brück 91002 Structure, Surface-mount Motion detector 200 ° Relay White IP54
Description
Motion detector with 200° detection range and 180° sneak-by guard. Movable ball-head detection range can be restricted by cover plates. Mounting on standard UP sockets is possible.
