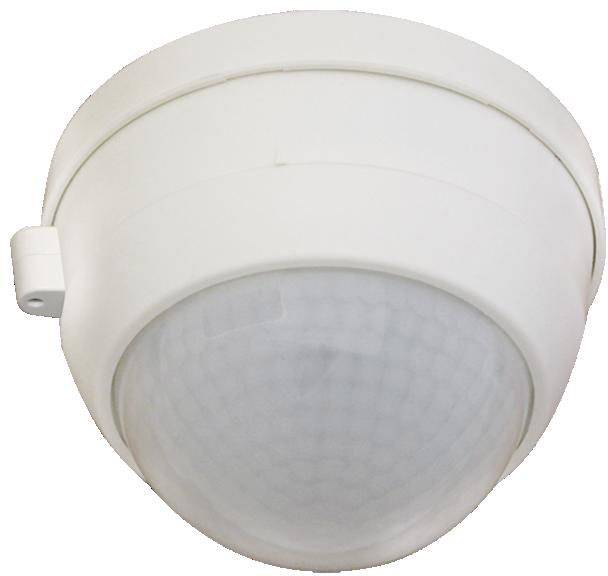

B.E.G. Brück 92140 Structure, Surface-mount Occupancy sensor 360 ° Relay White IP54
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Beg 92140 PD4-M-2C-AP-white Master
- With a large detection range
- Extension of the detection range of the slave devices is possible
- Manual switching via button is possible
Technical specifications
- Product type
Occupancy sensor
- Detection angle
360°
24 m
- Used at
Indoors
Outdoors
- Mounting type
Structure
Surface-mount
- Operating voltage
110 V
240 V
- Contact type
Relay
- Switching capacity
2300 W
- Switching capacity (LED)
300 W
- Standby current consumption
0.5 W
- Twilight settings
10 - 2000 lx
- Time settings
5 min - 120 min
- Factory colour
White
IP54
- Operating temperature
-25 °C - +50 °C
- Height
76 mm
- (Ø)
101 mm
- Dim
(Ø x H) 101 mm x 76 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2150014 B.E.G. Brück 92140 Structure, Surface-mount Occupancy sensor 360 ° Relay White IP54
User & Safety Instructions
User & Safety Instructions 2150014 B.E.G. Brück 92140 Structure, Surface-mount Occupancy sensor 360 ° Relay White IP54
Description
Alarm impulse: Secured triggering only with three detected movements within 9 seconds Presence detector with large detection range A potential-free contact for HKL version as MasterA channel for switching light Further functions can be adjusted via optional remote control Manual switching via button possible Extension of the detection range with slave devices possible
