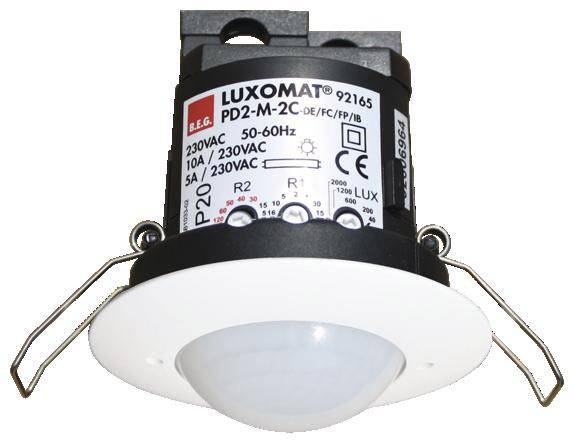

B.E.G. Brück 92165 Flush mount Occupancy sensor 360 ° Relay White IP20
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Beg 92165 PD2-M-2C-DE-white Master
- Circular detection area.
- Manual switching via button is possible
- Extension of the detection range by slave devices is possible
Technical specifications
- Building height 15 mm
- Product type
Occupancy sensor
- Detection angle
360°
10 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
110 V
240 V
- Contact type
Relay
- Switching capacity
2300 W
- Switching capacity (LED)
300 W
- Standby current consumption
0.5 W
- Twilight settings
10 - 2000 lx
- Time settings
15 s - 30 min
- Factory colour
White
IP20
- Operating temperature
-25 °C - +50 °C
- Height
84.5 mm
- (Ø)
80 mm
- Dim
(Ø x H) 80 mm x 84.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2150078 B.E.G. Brück 92165 Flush mount Occupancy sensor 360 ° Relay White IP20
User & Safety Instructions
User & Safety Instructions 2150078 B.E.G. Brück 92165 Flush mount Occupancy sensor 360 ° Relay White IP20
Description
Alarm pulse: Secured triggering only with three detected movements within 9 seconds presence detector with circular detection range. Design as MasterA potential-free contact for HVAC. A channel for switching light. Further functions can be set via optional remote control.
