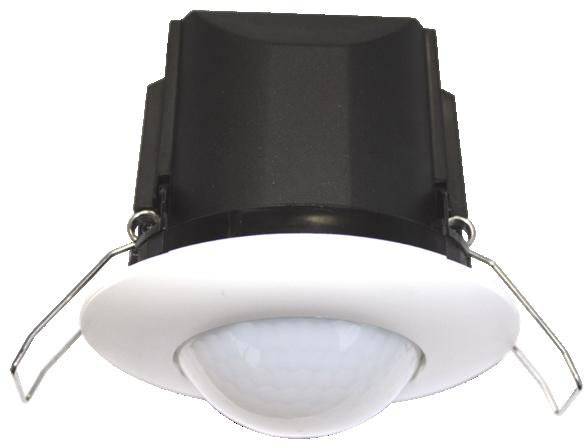

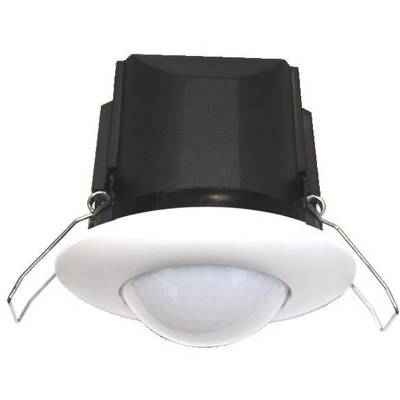

B.E.G. Brück 92196 Flush mount Ceiling-mount motion detector 360 ° Relay White IP23
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
BEG 92196 PD3N-1C-EN-WHITE
- Manual switching via button is possible
- Uninterrupted parallel circuit detection of several detectors
Technical specifications
- Building height 20 mm
- Product type
Ceiling-mount motion detector
- Detection angle
360°
10 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
110 V
240 V
- Contact type
Relay
- Switching capacity
2300 W
- Switching capacity (LED)
300 W
- Standby current consumption
0.5 W
- Twilight settings
10 - 2000 lx
- Time settings
15 s - 30 min
- Factory colour
White
IP23
- Operating temperature
-25 °C - +50 °C
- Height
81 mm
- (Ø)
83 mm
- Dim
(Ø x H) 83 mm x 81 mm
- Weight
184.00
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2150011 B.E.G. Brück 92196 Flush mount Ceiling-mount motion detector 360 ° Relay White IP23
User & Safety Instructions
User & Safety Instructions 2150011 B.E.G. Brück 92196 Flush mount Ceiling-mount motion detector 360 ° Relay White IP23
Description
Remotely controllable ceiling motion detector alarm impulse: Secured triggering only with three detected movements within 9 seconds. A channel for switching light. Special optical system for detecting even the smallest movements
