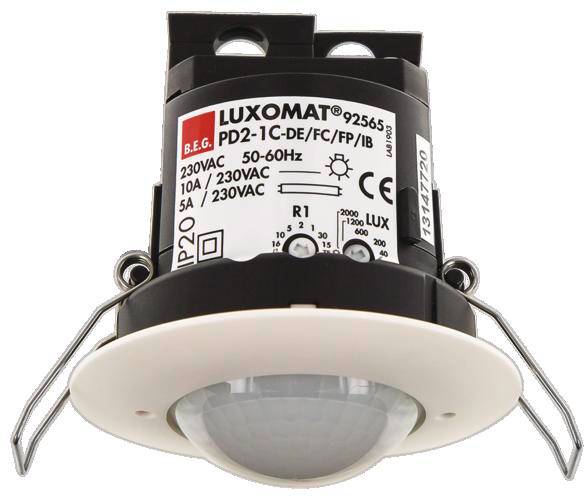

B.E.G. Brück 92565 Flush mount Occupancy sensor 360 ° Relay White IP20
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Beg 92565 PD2-M-1C-DE-white Master
- With potential-free contact
- Manual switching via button is possible
- Extension of the detection area with slave devices possible
Technical specifications
- Building height 15 mm
- Installation depth: 69.5 mm
- Product type
Occupancy sensor
- Detection angle
360°
10 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
110 V
240 V
- Contact type
Relay
- Switching capacity
2300 W
- Switching capacity (LED)
300 W
- Standby current consumption
0.4 W
- Twilight settings
10 - 2000 lx
- Time settings
15 s - 30 min
- Factory colour
White
IP20
- Operating temperature
-25 °C - +50 °C
- Height
84.5 mm
- (Ø)
84 mm
- Dim
(Ø x H) 84 mm x 84.5 mm
- Weight
182.00
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2150098 B.E.G. Brück 92565 Flush mount Occupancy sensor 360 ° Relay White IP20
User & Safety Instructions
User & Safety Instructions 2150098 B.E.G. Brück 92565 Flush mount Occupancy sensor 360 ° Relay White IP20
Description
Presence detector with a potential-free contact. Execution as master. A channel for switching light. Further functions can be set via optional remote control. Manual switching via button is possible. Extension of the detection area with slave devices possible.
