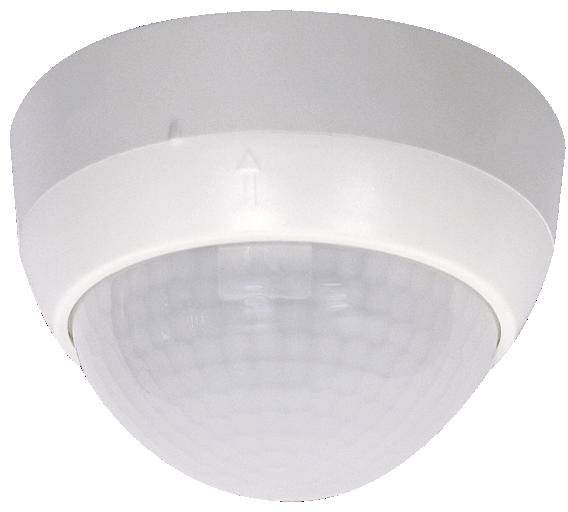

B.E.G. Brück 92580 Structure, Surface-mount Occupancy sensor 360 ° Relay White IP20
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Beg 92580 PD4-M-1C-AP-white Master
- With a large detection range
- Extension of the detection range by slave devices is possible
- Manual switching via button is possible
Technical specifications
- Product type
Occupancy sensor
- Detection angle
360°
24 m
- Used at
Indoors
- Mounting type
Structure
Surface-mount
- Operating voltage
110 V
240 V
- Contact type
Relay
- Switching capacity
2300 W
- Switching capacity (LED)
300 W
- Standby current consumption
0.4 W
- Twilight settings
10 - 2000 lx
- Time settings
15 s - 30 min
- Factory colour
White
IP20
- Operating temperature
-25 °C - +50 °C
- Height
63 mm
- (Ø)
98 mm
- Dim
(Ø x H) 98 mm x 63 mm
- Weight
228.00
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2150034 B.E.G. Brück 92580 Structure, Surface-mount Occupancy sensor 360 ° Relay White IP20
User & Safety Instructions
User & Safety Instructions 2150034 B.E.G. Brück 92580 Structure, Surface-mount Occupancy sensor 360 ° Relay White IP20
Description
Presence detector with a large detection range as MasterA potential-free contact Further functions can be adjusted via optional remote control Manual switching via pushbutton possible extension of the detection range with slave devices
