B.E.G. Brück 92583 Recess-mount, Flush mount Occupancy sensor 360 ° Relay White IP20
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

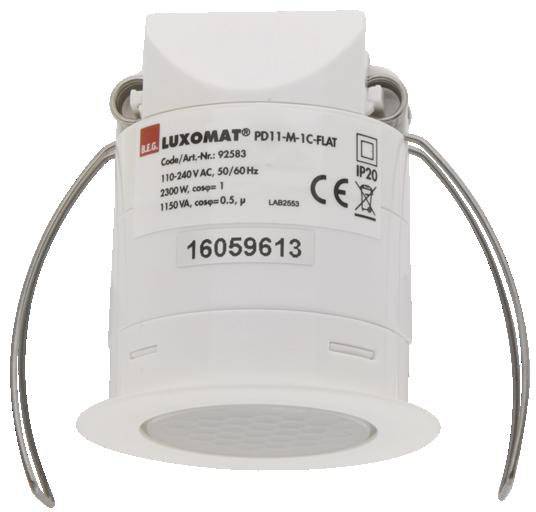

BEG 92583 PD11-M-1C-FLAT-DE-WHITE MASTER
- Especially flat
- Manual switching via button is possible
- Extension of the detection range by slave devices is possible
Technical specifications
- Building height 0.85 mm
- Product type
Occupancy sensor
- Detection angle
360°
9 m
- Used at
Indoors
- Mounting type
Recess-mount
Flush mount
- Operating voltage
110 V
240 V
- Contact type
Relay
- Switching capacity
2300 W
- Switching capacity (LED)
300 W
- Standby current consumption
0.3 W
- Twilight settings
20 - 2000 lx
- Time settings
5 min - 30 min
- Factory colour
White
IP20
- Operating temperature
25 °C - +50 °C
- Height
60.85 mm
- (Ø)
52 mm
- Dim
(Ø x H) 52 mm x 60.85 mm
- Weight
134.00
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2149995 B.E.G. Brück 92583 Recess-mount, Flush mount Occupancy sensor 360 ° Relay White IP20
User & Safety Instructions
User & Safety Instructions 2149995 B.E.G. Brück 92583 Recess-mount, Flush mount Occupancy sensor 360 ° Relay White IP20
Description
Particularly flat presence detector without additional power units Factory setting 10 min and 500 LuxDesign as MasterOnly 0.85 mm visible surface mounting height Simple operation using the necessary remote controlA channel for switching light spring terminals for the simple and quick installation in suspended ceiling extension of the detection area with slave devices is possible
This text is machine translated.
This text is machine translated.
Features
- Incl. Cover plates and clamping ring for installation in lamps
- Incl. Accessories for flush mounting in ceiling and visible concrete
