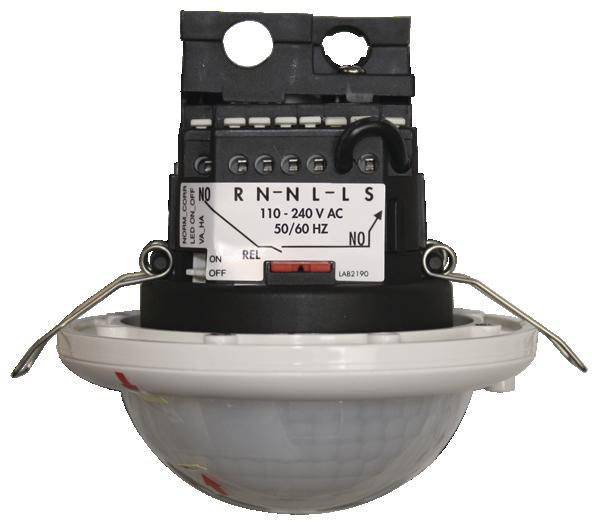

B.E.G. Brück 92586 Flush mount Ceiling-mount motion detector 360 ° Relay White IP20
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
BEG 92586 PD4-M-1C-K-DE-WHITE MASTER
- Specially designed for corridors
- Potentalfree switching contact
- Manual switch possible via button
Technical specifications
- Installation depth: 73 mm
- Building height 30 mm
- Installation diameter 64 mm
- Product type
Ceiling-mount motion detector
- Detection angle
360°
40 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
110 V
240 V
- Contact type
Relay
- Switching capacity
2300 W
- Switching capacity (LED)
300 W
- Standby current consumption
0.5 W
- Twilight settings
10 - 2000 lx
- Time settings
15 s - 30 min
- Factory colour
White
IP20
- Operating temperature
-25 °C - +50 °C
- Height
103 mm
- (Ø)
97 mm
- Dim
(Ø x H) 97 mm x 103 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2150041 B.E.G. Brück 92586 Flush mount Ceiling-mount motion detector 360 ° Relay White IP20
User & Safety Instructions
User & Safety Instructions 2150041 B.E.G. Brück 92586 Flush mount Ceiling-mount motion detector 360 ° Relay White IP20
Description
Presence detectors specially designed for corridors. A potential-free switching contact version as master. Further functions can be set via optional remote control. Extension of the detection area with slave devices possible.
