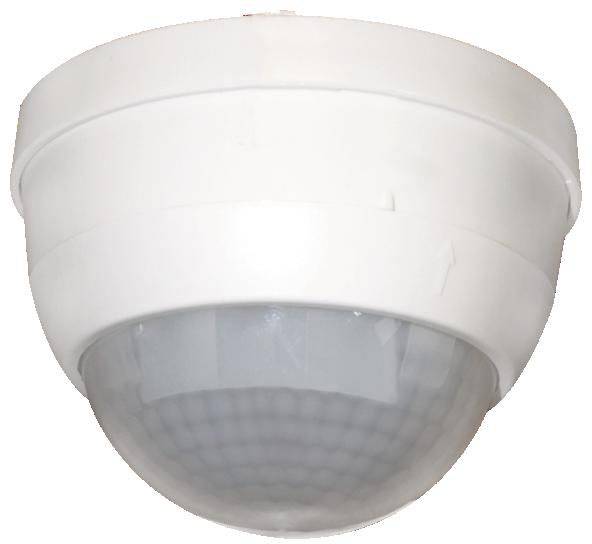

B.E.G. Brück 92587 Structure, Surface-mount Occupancy sensor 360 ° Relay White IP20
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
BEG 92587 PD4-M-1C-K-AP-WHITE MASTER
- Specially designed for corridors
- Extension of the detection range by slave devices is possible
- Manual switching via button is possible
Technical specifications
- Product type
Occupancy sensor
- Detection angle
360°
40 m
- Used at
Indoors
- Mounting type
Structure
Surface-mount
- Operating voltage
110 V
240 V
- Contact type
Relay
- Switching capacity
2300 W
- Switching capacity (LED)
300 W
- Standby current consumption
0.5 W
- Twilight settings
10 - 2000 lx
- Time settings
15 s - 2000 Lux
- Factory colour
White
IP20
- Operating temperature
-25 °C - +50 °C
- Height
76 mm
- (Ø)
101 mm
- Dim
(Ø x H) 101 mm x 76 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2149991 B.E.G. Brück 92587 Structure, Surface-mount Occupancy sensor 360 ° Relay White IP20
User & Safety Instructions
User & Safety Instructions 2149991 B.E.G. Brück 92587 Structure, Surface-mount Occupancy sensor 360 ° Relay White IP20
Description
Presence detector especially for corridors A potential-free switching contact version as MasterAdditional functions can be adjusted via optional remote controlManual switching via buttons Extension of the detection range with slave devices possible
