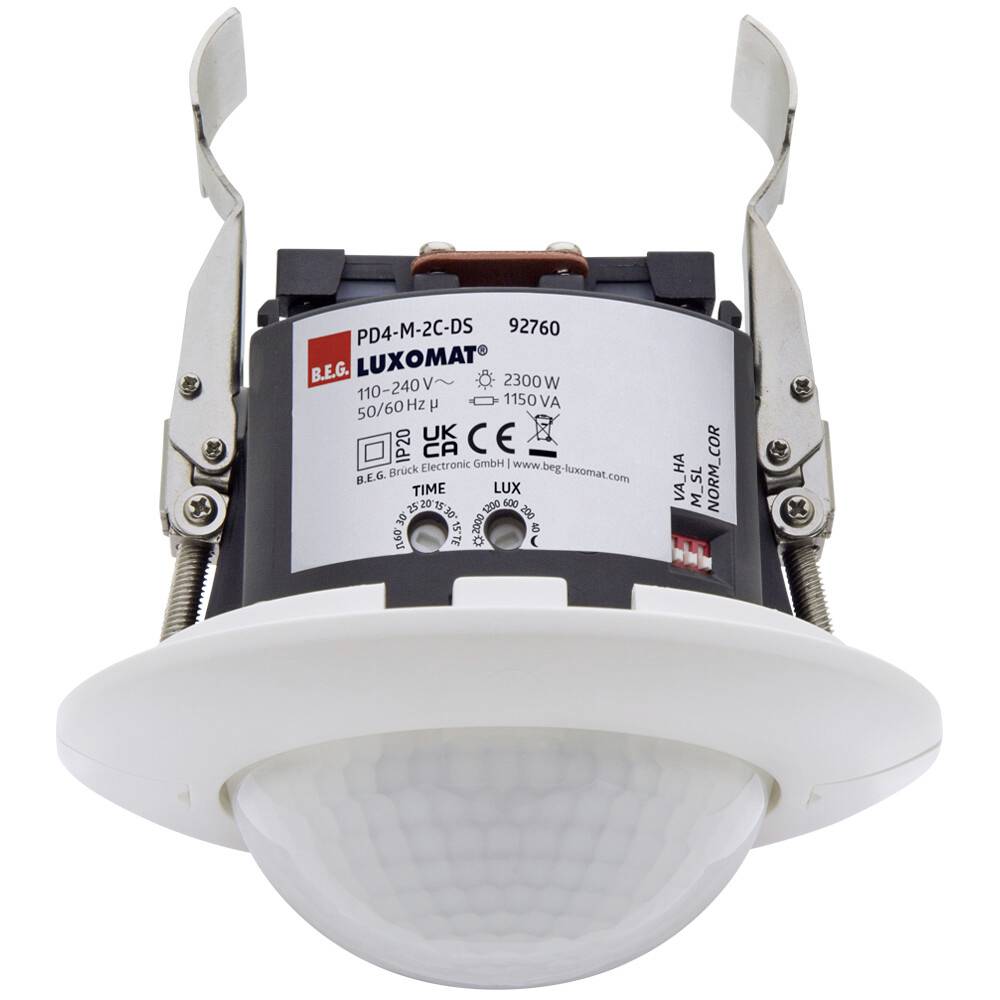

B.E.G. Brück 92760 Flush mount Occupancy sensor White IP20
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Design: Presence detectors
- Motion detector/presence detector technology: Passive infrared
- HVAC activation: No.
- Forced shutdown: Yes
- Animal slope: No.
- Low-level creep protection: Yes
- Rear field monitoring: No.
- Network-compatible: No.
- Optimum mounting height 2.5 m.
- Staircase lighting timer: Yes
- Bridge switch: No.

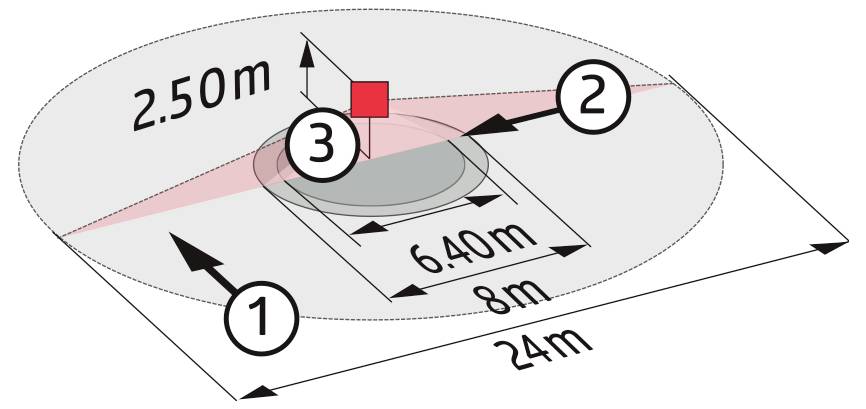

- Max. Range to one side: 12 m.
- Max. Presence area: 50 m²
- Max. Range: Front 9 m
- Diameter of detection area on the floor: 24 m.
- Suitable for wireless transmission: No.
- Remote control: Yes
- With remote control: No.
- Response sensitivity adjustable: Yes
- Response brightness adjustable: Yes
- With signal unit: No.
- Teach-Function for Response Brightness: Yes
- Dimming function with dimming element: No.
- Mounting type: Flush-mounted
- Suitable for ceiling mounting: Yes
- Ceiling installation without panel socket: Yes
- Suitable for wall mounting: No.
- Material: Plastic
- Material quality: Other
- Halogen-free: Yes
- Surface protection: Untreated
- Design of surface: Matt
- Antibacterial treatment: No.
- Colour: white
- RAL number (similar): 9010
- Transparent: No.
- Protection class (IP) IP20
- Impact strength: IK04
- Voltage type AC
- Mains frequency: 50/60 Hz.
- Nominal voltage 110..240 V
- Min Switch-on time 15 seconds
- Max. duty cycle 60 min
- Switch-off delay 0 s.
- Switch-on delay 0 s.
- Response brightness 20 - .2000 Lux
- Max. switching capacity 2300 W
- Max. Switching capacity LED 800 W
- Suitable for C-Load: No.
- Number of switching zones: 450
- Max. Power surge 165 A
- Min Power surge 0 A
- Control current 6 mA
- Extension input: Yes
- With alarm function: No.
- With acoustic sensor: No.
- Ambient temperature: -25 to 50 °C
- Height: 100 mm
- Diameter 117 mm
- With connection cable: No.
- Length of connection cable 0 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- Compatible with Casambi: No.
- IFTTT support available: No.
- Product type
Occupancy sensor
- Mounting type
Flush mount
- Operating voltage
110 V
240
- Factory colour
White
IP20
- Height
100 mm
- (Ø)
117 mm
- Dim
(Ø x H) 117 mm x 100 mm
- Halogen-free
Yes
- Material
Plastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3795827 B.E.G. Brück 92760 Flush mount Occupancy sensor White IP20
User & Safety Instructions
User & Safety Instructions 3795827 B.E.G. Brück 92760 Flush mount Occupancy sensor White IP20
Description

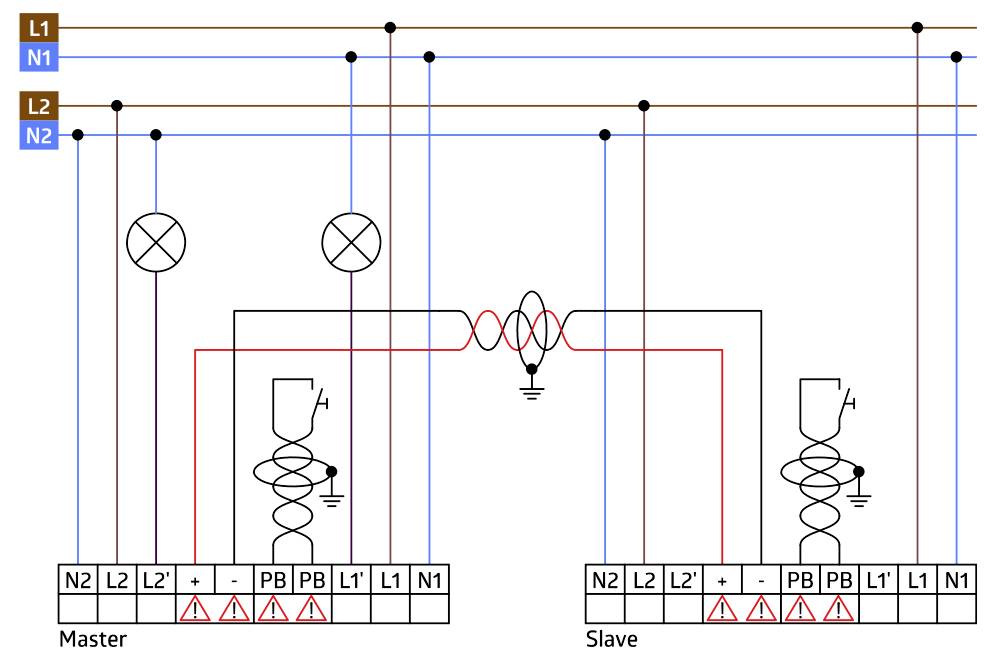

Occupancy sensor for connection to two phases, 2 channels to switch light: The lighting system can be divided into two galvanically separated groups., Master device design, extension of the detection range by another PD4-M-2C-DS configured as slave device, manual switching possible via a common button, further functions can be set via optional remote control, factory settings 10 min and 500 lux
