B.E.G. Brück 93346 Structure, Surface-mount Motion detector 230 ° Relay Stainless steel IP54
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

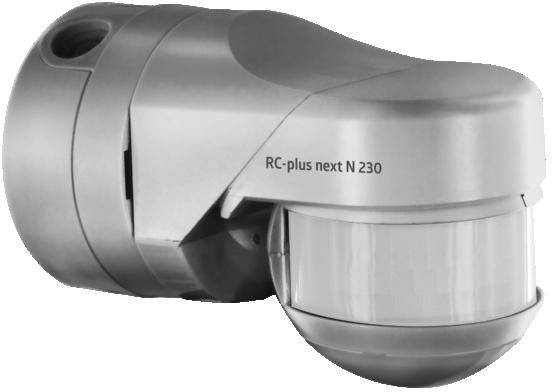

Beg 93346 RC-plus next N 230 stainless steel
- With sneak-by guard
- Manual switching via button is possible
- Simple mounting through plug base
- This text is machine translated.
Technical specifications
- Product type
Motion detector
- Detection angle
230°
20 m
- Used at
Outdoors
Indoors
- Mounting type
Structure
Surface-mount
- Operating voltage
110 V
240 V
- Contact type
Relay
- Switching capacity
3000 W
- Switching capacity (LED)
300 W
- Standby current consumption
0.5 W
- Twilight settings
2 - 2000 lx
- Time settings
15s - 16 min
- Factory colour
Stainless steel
IP54
- Operating temperature
-25 °C - +50 °C
- Length
121 mm
- Width
71 mm
- Height
85 mm
- Dim
(L x W x H) 121 x 71 x 85 mm
- Weight
0.3400
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2150065 B.E.G. Brück 93346 Structure, Surface-mount Motion detector 230 ° Relay Stainless steel IP54
User & Safety Instructions
User & Safety Instructions 2150065 B.E.G. Brück 93346 Structure, Surface-mount Motion detector 230 ° Relay Stainless steel IP54
Description
Features
- Mechanical range adjustment
- of movable ball head
