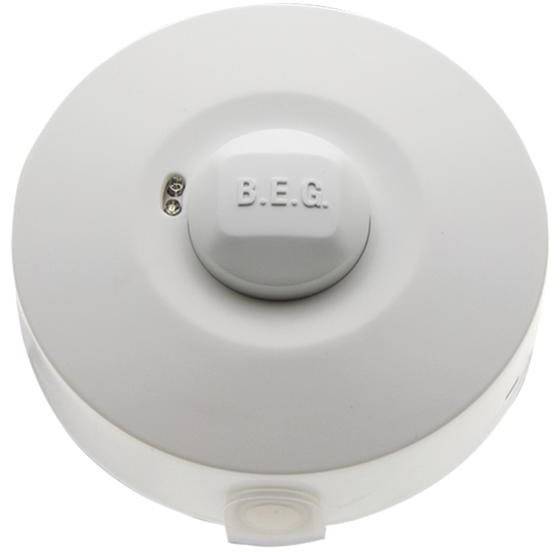

B.E.G. Brück 94402 Surface-mount HF motion detector 360 ° Relay White IP20
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
BEG 94402 HF-MD2-AP MOTION DETECTOR
- Temperature-independant detection
- Detection through materials
- For applications without direct visual contact
Technical specifications
- Product type
HF motion detector
- Detection angle
360°
16 m
- Used at
Indoors
- Mounting type
Surface-mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
1200 W
- Standby current consumption
1.2 W
- Twilight settings
2 - 2000 lx
- Time settings
5 s - 15 min
- Factory colour
White
IP20
- Operating temperature
-15 °C - +50 °C
- Height
45 mm
- (Ø)
116.5 mm
- Dim
(Ø x H) 116.5 mm x 45 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2150193 B.E.G. Brück 94402 Surface-mount HF motion detector 360 ° Relay White IP20
User & Safety Instructions
User & Safety Instructions 2150193 B.E.G. Brück 94402 Surface-mount HF motion detector 360 ° Relay White IP20
Description
High-frequency motion detector, especially for surface mounting. Range, twilight value and delay time adjustable via potentiometer. HF-technology: 5.8 GHz - reacts independantly of temperature to smallest movements. HF transmission power 5.8 GHz, less than 10 mW, ISM band.
