B-SAFETY BR861085 ClassicLine Emergency eye wash Eyewash Wall
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

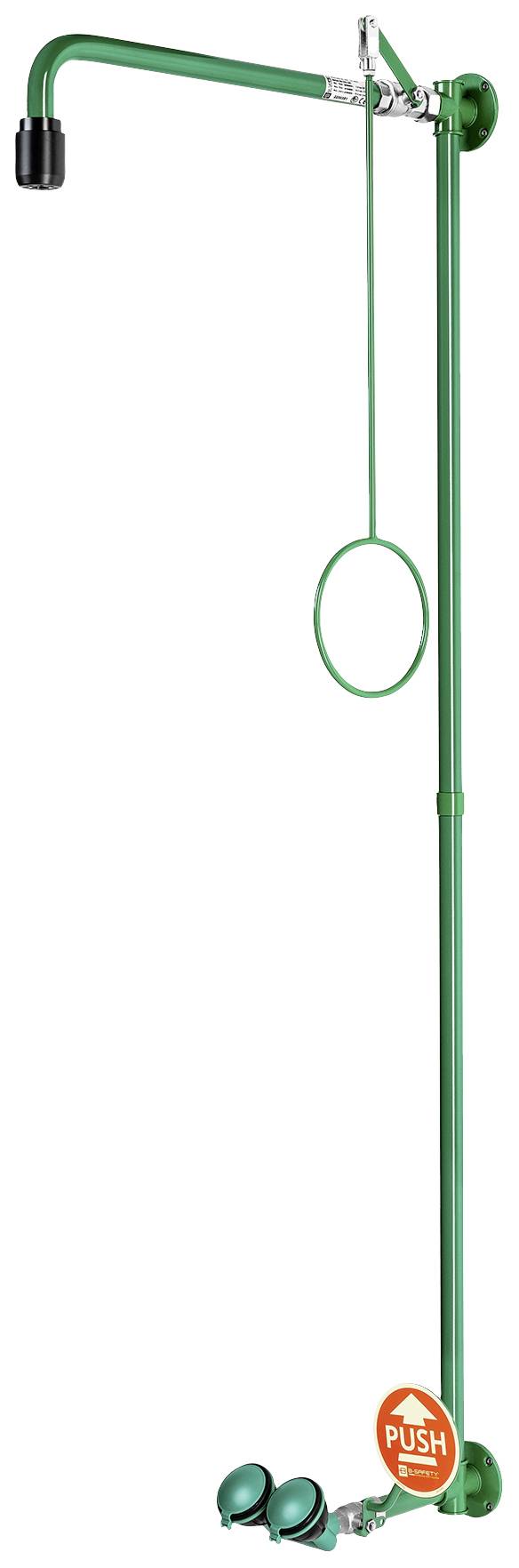

ClassicLine emergency body shower with eye shower
- High power shower head
- With 6 bits. Eye shower with push lever
- Self-emptying
- Stainless steel with chemical-resistant powder coating
Technical specifications
- Operating pressure 1.5 to 3 bar
- Nosing: 630 mm
- Mounting height 810 mm
- Total height: 1625 mm
- Product type
Emergency eye wash
- Content
1 pc(s)
- Connection
3/4 inch
- Flow (max.)
50 l/min
- Weight
7.7 kg
- Features
Eyewash
- Material
Stainless steel
Plastic
- Mounting type
Wall
- Standards
DIN EN 15154-1:2006
DIN EN 15154-2:2006
DIN EN 15154-5:2019
ANSI Z358.1-2014
DVGW NW-0416CL0425
DVGW NW-0417CL0263
- Height
1625 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2995145 B-SAFETY BR861085 ClassicLine Emergency eye wash Eyewash Wall
User & Safety Instructions
User & Safety Instructions 2995145 B-SAFETY BR861085 ClassicLine Emergency eye wash Eyewash Wall
Information
Information 2995145 B-SAFETY BR861085 ClassicLine Emergency eye wash Eyewash Wall
Description
The B-SAFETY emergency shower combinations – combinations of body-emergency showers and eye showers – save space compared to a single installation. This gives you the opportunity to create a central point of contact for first aid. Through the possible combination with a hand-held eye shower or hand-held shower, an injured person has the additional possibility of partially caring for minor injuries without having to use the body-emergency shower immediately.
The B-SAFETY Classic Line Emergency Showers are made from high quality materials and are suitable for use in laboratories and research as well as for harsh industrial applications. B-SAFETY's green chemical resistant polyester powder coating has proven itself in many aggressive environments and is resistant to many acids and alkalis.
The emergency body showers are equipped with the B-SAFETY high performance shower head, which not only meets the requirements of ANSI Z358.1 and DIN EN 15154, but is also self-draining, largely calcification and maintenance-free and is very robust and corrosion resistant. The limited, even and above all soft water jet is optimized for rinsing chemicals on the skin.
This text is machine translated.
The B-SAFETY Classic Line Emergency Showers are made from high quality materials and are suitable for use in laboratories and research as well as for harsh industrial applications. B-SAFETY's green chemical resistant polyester powder coating has proven itself in many aggressive environments and is resistant to many acids and alkalis.
The emergency body showers are equipped with the B-SAFETY high performance shower head, which not only meets the requirements of ANSI Z358.1 and DIN EN 15154, but is also self-draining, largely calcification and maintenance-free and is very robust and corrosion resistant. The limited, even and above all soft water jet is optimized for rinsing chemicals on the skin.
This text is machine translated.
Features
- Includes top and bottom water connection 3/4-inch IG for installation in circulation lines, stainless steel plug 3/4-inch
- Wall flange with 4 mounting holes made of stainless steel, chemical resistant green powder coated, water connection 3/4-inch IG
- Stainless steel connector for quick assembly and easy shower arm alignment
- Ball valve 3/4-inch made of zinc-resistant brass, with quick mounting system and drawbar operation, DIN-DVGW tested and approved
- Drawbar with ring handle made of stainless steel, chemically resistant green powder-coated, length 700 mm
- 3/4-inch stainless steel wall shower arm, chemical resistant green powder coated, discharge 630 mm
- Integrated automatic flow regulator 50 liter / minute for a standard-compliant beam pattern with a specified operating range from 1.5 to 3 bar residual pressure
- High-power shower head made of chemical resistant plastic, black, with improved spray image, corrosion-resistant, largely limescale and maintenance-free, very robust, even emptying
- Sign for body emergency shower according to DIN EN ISO 7010 and ASR A1.3, self-adhesive PVC foil, dimensions 150 x 150 mm, detection range 15 meters
- Two 3/4-inch stainless steel connection tubes, chemical resistant green powder coated, total length 1500 mm
- Wall flange with 4 mounting holes made of stainless steel, chemical resistant green powder coated, water connection 3/4-inch IG
- Built-in ClassicLine safety eye shower with 45° shower heads
- Stainless steel connection tube for easy installation and positioning of the shower, chemical resistant green powder coated, water connection 3/4-inch AG
- Ball valve 1/2-inch made of stainless steel, with PUSH-lever operation, DIN-DVGW tested and approved
- Steel control plate, chemical resistant green powder-coated, length 130 mm, with large "PUSH" signal, long luminescence according to DIN 67510
- Integrated automatic flow regulator 14 liter/minute for a standard-compliant beam pattern with a specified operating range from 1.5 to 5 bar residual pressure
- Wide-beam high-power shower heads angled at 45°, with plastic spray plate, low calcification, incl. Rubber protection and sealing dust cover with folding mechanism, mounted via distribution fork
- Sign for eye-shower according to DIN EN ISO 7010 and ASR A1.3, self-adhesive PVC-foil, dimensions 100 x 100 mm, detection range 10 meters
- Installation height 810 mm (± 100 mm)
- AS PER BGI/GUV-I 850-0, DIN 1988 AND DIN EN 1717
- ACCORDING TO ANSI Z358.1-2014, DIN EN 15154-1:2006, DIN EN 15154-2:2006 AND DIN EN 15154-5:2019
- DIN-DVGW tested and approved
Scope of delivery
- Emergency shower
- Eye shower
- Pull rod
- Rating plate
- User manual.
