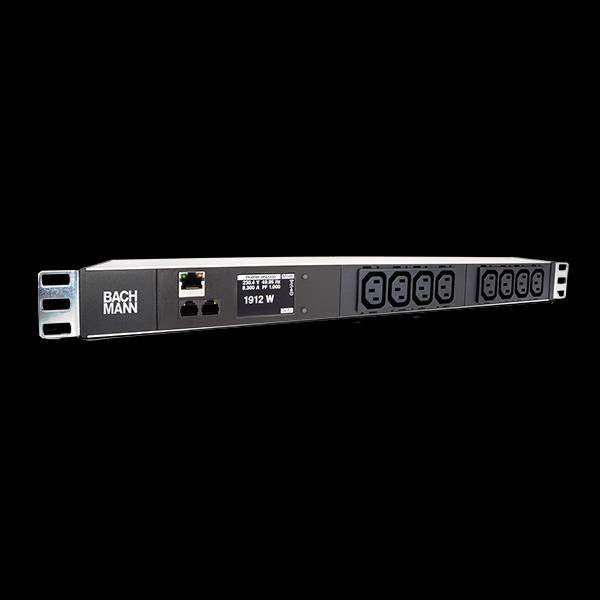

Bachmann 3293010 19 inch Server rack cabinet power strip 1 U IEC C13 10A incl. 2 steel brackets Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Mounting dimension (standardized): 482.6 mm (19 in.)
- Mounting dimension: 482.6 mm
- Mounting direction: Horizontal / vertical
- Electrical connection: Connection cable with plug
- Design of the electrical connection: Schuko
- Number of phases: 1
- Cable length: 2 m
- Number of C13 sockets: 8
- Number of height units (RUs): 1
- Length: 482 mm
- Width 44 mm
- Depth: 47 mm
- Supply voltage 230 V
- Line suppression filter: No.
- Switch option: No
- With counter: No.
- Control function: Yes
- SNMP: Yes
- Ethernet interface: Yes
- With display: Yes
- Evaluation: On distance
- With LED indicator: No.
- With fuse: No.
- Ammeter: Yes
- Temperature measurement: Yes
- With mounting material: Yes
- Colour, black
- Product type
Server rack cabinet power strip
- Features
incl. 2 steel brackets
- Suitable for server rack cabinet (inch)
19 inch
- Rack unit
1 U
- Socket type
IEC C13 10A
- Outlets
8
- Voltage (max.)
230 V AC
- Dim
(L x W x H) 482.00 mm x 44.00 mm x 4.4 cm
3700 VA
- Cable length
2 m
- Content
1 pc(s)
- Factory colour
Black
- Width
44.00 mm
- Height
4.4 cm
- Depth
47.00 mm
- Length
482.00 mm
- Rack size
483 mm (19")
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- System voltage
230 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3133998 Bachmann 3293010 19 inch Server rack cabinet power strip 1 U IEC C13 10A incl. 2 steel brackets Black
User & Safety Instructions
User & Safety Instructions 3133998 Bachmann 3293010 19 inch Server rack cabinet power strip 1 U IEC C13 10A incl. 2 steel brackets Black
Description
BN2000
PDU in 1HE profile 8 x IEC320 C13 lockable, 2m H05VV-F 3G1,5mm² with shock-contact angle plug Integrated function for measuring current, voltage, reactive, apparent, active power, Energy, frequency and Power factor, integrated temperature sensor + two interfaces for external sensors, with integrated display, integrated web server with 10/100Mbit Ethernet connection, incl. mounting bracket and screws, packed in BlueNet carton,
This text is machine translated.
PDU in 1HE profile 8 x IEC320 C13 lockable, 2m H05VV-F 3G1,5mm² with shock-contact angle plug Integrated function for measuring current, voltage, reactive, apparent, active power, Energy, frequency and Power factor, integrated temperature sensor + two interfaces for external sensors, with integrated display, integrated web server with 10/100Mbit Ethernet connection, incl. mounting bracket and screws, packed in BlueNet carton,
This text is machine translated.
