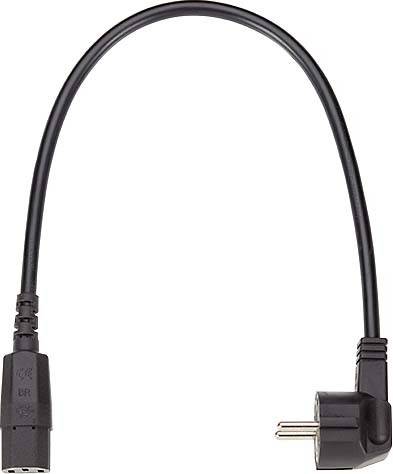

Bachmann 356.1723 Current Cable Black 1.50 m incl. PG
EAN:
Part number:
Item no:
Datasheet (PDF)
Bachmann extension H05VV-F 3G1,5 SW, L:1.5, CEE7/7/C13 356.1723
Technical specifications
- Connection 1: Right-angled Schuko plug
- Connection 2: Straight IEC socket
- Connector system-linked: No.
- Wire number: 3
- Conductor cross-section: 1.5 mm²
- Length: 1.5 m
- Jacket material: Polyvinyl chloride (PVC)
- Temperature resistance 70 °C
- Nominal current 10 A
- Nominal voltage 230..250 V
- Mains frequency: 50/60 Hz.
- Sheath color: Black
- Spiral cable: No.
- With ground wire: Yes
- Protection class (IP) IP20
- Oil resistant according to EN 60811-404: No.
- With cord switch: No.
- Outer diameter approx. 8.2 mm
- Product type
Current Cable
- Cable use
Current
- Version
Cable
- Connector version
angled
- Cable features
incl. PG
- Cable length
1.50 m
- Load (max.)
10 A
- Factory colour
Black
- Nominal voltage
250 V
- Cable design
Round
- Length
1.50 m
IP20
- Connection type
DC (current)
- Operating voltage
250 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3158731 Bachmann 356.1723 Current Cable Black 1.50 m incl. PG
User & Safety Instructions
User & Safety Instructions 3158731 Bachmann 356.1723 Current Cable Black 1.50 m incl. PG
Description
Power distributor Power SUPPLY lines/ CONNECTION lines 10A/ 250V~ 1.5 m H05VV-F 3G 1.5 mm² black CEE 7/7 safety plug with double earthing contact system angle, molded C13-cold device socket IEC 60320, centrally mounted, individually packaged
