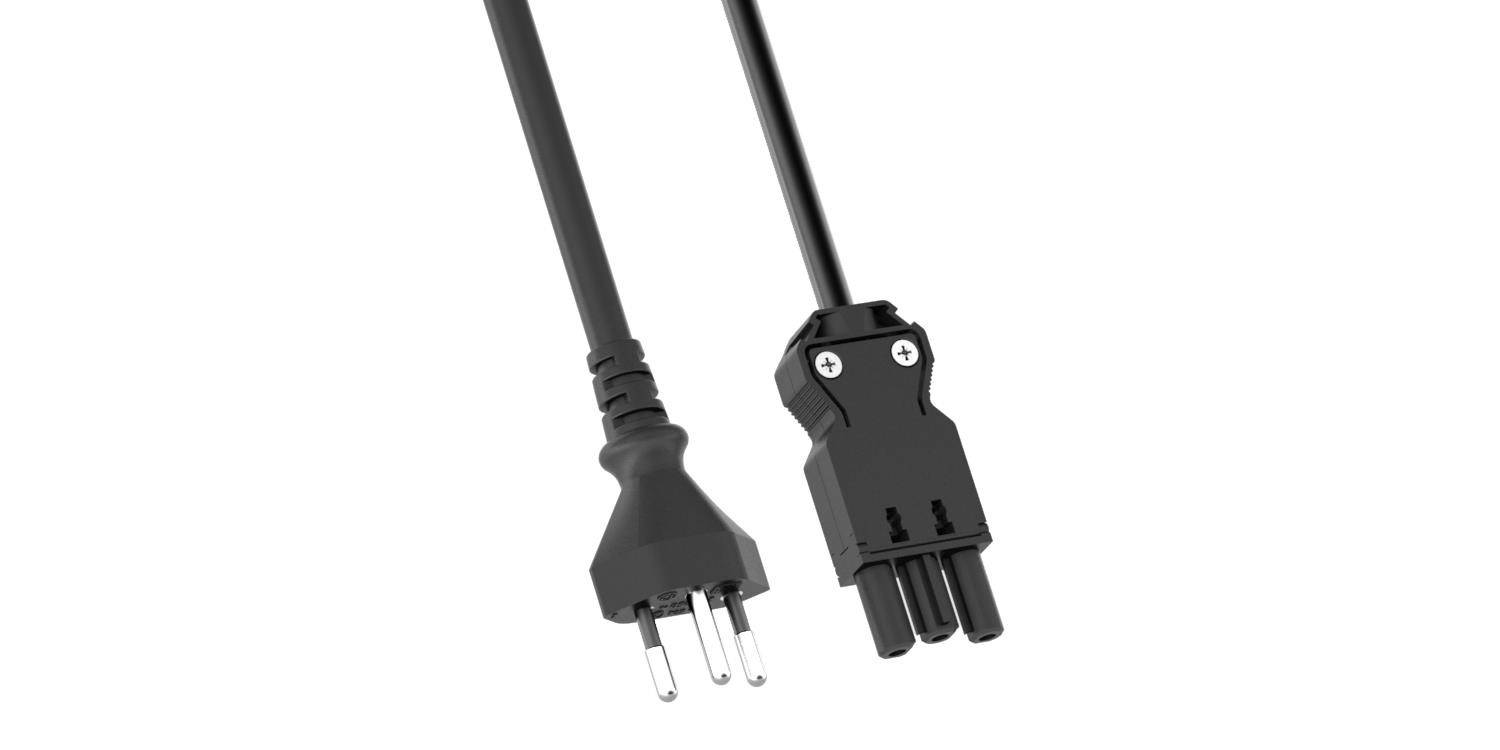

Bachmann 375.017 Current Mains cable Black 3.00 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Bachmann device feed 3.0m 375,017
Technical specifications
- Connection 1: Swiss standard type 12
- Connection 2: Other
- Connector system-linked: Yes
- Wire number: 3
- Conductor cross-section: 1 mm²
- Length: 3 m
- Jacket material: Polyvinyl chloride (PVC)
- Temperature resistance 5 to .40 °C
- Nominal current: 16 A
- Nominal voltage: 250 V
- Frequency: 50 Hz
- Sheath color: Black
- Spiral cable: No.
- With ground wire: Yes
- Protection class (IP) IP20
- Oil resistant according to EN 60811-404: No.
- With cord switch: No.
- Outer diameter approx. 7 mm
- Product type
Current Mains cable
- Cable use
Current
- Version
Mains cable
- Type A
Switzerland plug
- Connector version
straight
- Type B
Wieland GST18 receptacle
- Cable length
3.00 m
- Factory colour
Black
- Nominal voltage
250 V
- Nominal current
16 A
- Cable design
Round
- Length
3.00 m
IP20
- Operating voltage
250 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3158740 Bachmann 375.017 Current Mains cable Black 3.00 m
User & Safety Instructions
User & Safety Instructions 3158740 Bachmann 375.017 Current Mains cable Black 3.00 m
Description
Power distribution unit line Wieland power line 16A/ 250V~, 50Hz 3 m H05VV-F 3G 1 mm² black Swiss plug T12, central, molded Wieland GST18i3 socket, central, screwed IP20 individually wound
