Bachmann 800.2134 Power strip 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Power strip
- Light bulb features
incl. display
Energy consumption metering
- Cable length
3 m
- Used at
Mains socket
- Mounting type
Horizontal
Upright
- No. of IEC C13 10A sockets
24
- No. of IEC C19 16A sockets
3
- Operating voltage
230 V
- Length
1321 mm
- Width
44 mm
- Height
47 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3785535 Bachmann 800.2134 Power strip 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3785535 Bachmann 800.2134 Power strip 1 pc(s)
Description

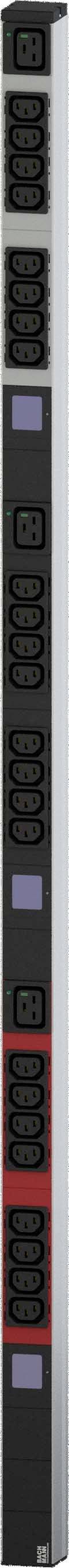

BN0500 ALU 1HE power outlet with integrated power measurement, 24-way IEC C13 + 3 IEC C19 lock sockets, divided into three phases, per phase 8xC13 1xC19 lock, power supply H05VV-F 5G2,5 mm² with CEE 16A plug, with retaining bracket 1HE.
