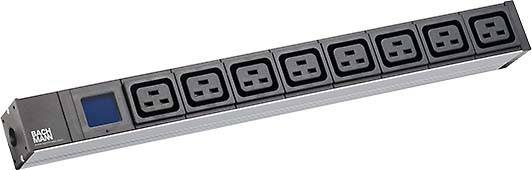

Bachmann 8002154 19 inch Server rack cabinet power strip 1 U IEC C19 16A Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Mounting dimension (standardized): 482.6 mm (19 in.)
- Mounting dimension: 482.6 mm
- Mounting direction: Horizontal / vertical
- Electrical connection: Connection cable with plug
- Design of the electrical connection: Schuko
- Cable length: 2 m
- Number of C19 sockets: 8
- Number of height units (RUs): 1
- Length: 482 mm
- Width 44 mm
- Depth: 47 mm
- Supply voltage 230 V
- Line suppression filter: No.
- Switch option: No
- SNMP: No.
- With display: Yes
- Evaluation: Local
- With LED indicator: No.
- With fuse: No.
- Ammeter: Yes
- Temperature measurement: No.
- With mounting material: Yes
- Product type
Server rack cabinet power strip
- Suitable for server rack cabinet (inch)
19 inch
- Rack unit
1 U
- Socket type
IEC C19 16A
- Outlets
8
- Voltage (max.)
230 V
- Dim
(L x W x H) 482.00 mm x 44.00 mm x 4.4 cm
- Cable length
2.00 m
- Content
1 pc(s)
- Factory colour
Black
- Width
44.00 mm
- Height
4.4 cm
- Depth
47.00 mm
- Length
482.00 mm
- Rack size
483 mm (19")
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- System voltage
230 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3133993 Bachmann 8002154 19 inch Server rack cabinet power strip 1 U IEC C19 16A Black
User & Safety Instructions
User & Safety Instructions 3133993 Bachmann 8002154 19 inch Server rack cabinet power strip 1 U IEC C19 16A Black
Description
BN0500
1HE power strip with integrated power measurement, 8x IEC320 C19 sockets black incl. operating instructions Feed: 2.0m H05VV-F 3G1,5mm² with earthing contact angle plug, incl. holding angle with printing Bachmann, packed in BlueNet carton
This text is machine translated.
1HE power strip with integrated power measurement, 8x IEC320 C19 sockets black incl. operating instructions Feed: 2.0m H05VV-F 3G1,5mm² with earthing contact angle plug, incl. holding angle with printing Bachmann, packed in BlueNet carton
This text is machine translated.
