Bachmann 911028 Mounting bracket 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Mounting type: Other
- Type of cover: Cover
- Cover version: Closed
- Type of door: Without
- Transparent cover / door: No.
- With lock: No.
- Height: 58 mm
- Width 505 mm
- Depth: 151 mm
- Mounting depth: 58 mm
- Internal depth 56 mm
- Material thickness of housing 1.5 mm
- Colour: white
- RAL number: 9010
- Width in division units: 2
- Mounting option: Yes
- Material of housing: Steel sheet/plastic
- Surface protection: Powder-coated
- With mounting plate: No.
- Suitable for outside use: No.
- Suitable for lightning protection: No.
- Product type
Mounting bracket
- Factory colour
White
- Dim
(W x H x D) 50.5 x 5.8 x 15.1 cm
- Width
50.5 cm
- Height
5.8 cm
- Cable design
Round
- Version
Cable
- Depth
15.1 cm
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3159124 Bachmann 911028 Mounting bracket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3159124 Bachmann 911028 Mounting bracket 1 pc(s)
Description

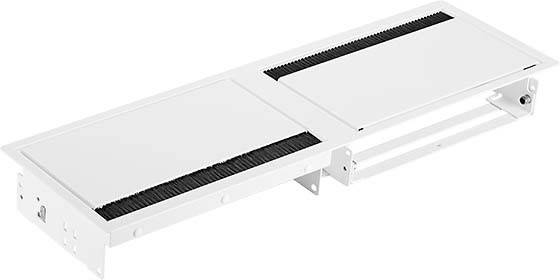

CONI DUO installation frame length: 505mm / 6-fold Colour: White, RAL 9010, two 3-fold frames asymmetrically set, for installation in countertops, housing and lid powder coated steel, lid folding with end stop, and stop point, brush strip black, socket insert attachment, accessories: Mounting set, individually packed in carton, please refer to the dimensions of the data sheet
