Name: Bachmann 924.350 924.350 Recessed housing White 78 mm 68 mm 1 pc(s)
Brand: Bachmann
SKU: 3785113

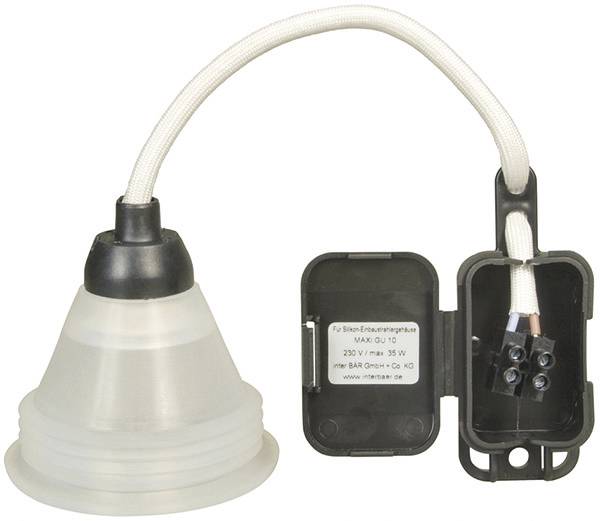

Silicone lamp holder with white flexible cord and black wall-mount base shown open, revealing wiring connections.<br>

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type: White

Width: 68 mm

Height: 78 mm

Documents & Downloads

Datasheet

Datasheet 3785113 Bachmann 924.350 924.350 Recessed housing White 78 mm 68 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3785113 Bachmann 924.350 924.350 Recessed housing White 78 mm 68 mm 1 pc(s)

Description

Silicon installation emitter housing MAXI, color: White interBär series 1000, for high voltage halogen and LED illuminant, UV-, ozone- and aging-resistant, for GU10 halogen lamp D:51mm, 230V, 35W max or GU10 230V LED illuminant up to 5W, only suitable for halogen lamps which radiate the heat/discharge forward!, Do not use COOL BEAM illuminant!, mounting diameter: 68mm, installation depth: approx. 85mm with socket, outer dimensions: D:79mm, height: approx. 55mm (without socket)

This text is machine translated.
