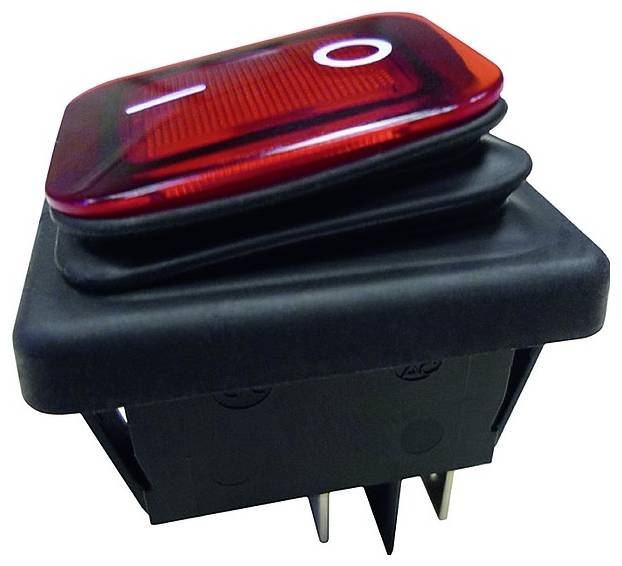

Bachmann 924178 Flip switch 924.178 1 pc(s)
EAN:
Part number:
Item no:
Product type
Flip switch
Casing/button colour
Red
Black
Front panel cut-out
22 x 30 mm
Lighting type
incl. lighting
Connection
Type C CEE 7/16 plug 6.3 mm
Technical specifications
- Installation depth: 6.3 mm
- Design: On/off switch
- Material: Plastic
- Transparent: No.
- Design of surface: Matt
- Nominal voltage: 250 V
- Nominal current: 16 A
- Connection type: Spade connector
- Halogen-free: No.
- Imprint/Identification: Code 0 and 1
- Black enclosure
- Material quality: Other
- Mounting type: Snap-in
- Operating mode: Rocker
- Lighting: Other
- Number of controls: 1
- Number of pins: 2-pole
- With cover frame: No.
- Control color: Red
- RAL number (similar) Housing: 9005
- Installation cut-out 22..30 mm
- Product type
Flip switch
- Casing/button colour
Red
Black
- Front panel cut-out
22 x 30 mm
- Lighting type
incl. lighting
- Print motif
0/I
- Material
Plastic
- Connection
Type C CEE 7/16 plug 6.3 mm
- Number of pins
2
- Max. temperature
120 °C
- Recess depth
6.3 mm
- Content
1 pc(s)
- Type
924.178
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550666 Bachmann 924178 Flip switch 924.178 1 pc(s)
Description
Panel-mount rocker switch series 3627 black/red
IP65, with lighting
16 (8) A, 250 V, 2-pole, circuit breaker, T 120°C
Snap-in attachment for cut-out.22 x 30 mm
Spade terminals 6.3 mm
Rocker printing 0- I
This text is machine translated.
IP65, with lighting
16 (8) A, 250 V, 2-pole, circuit breaker, T 120°C
Snap-in attachment for cut-out.22 x 30 mm
Spade terminals 6.3 mm
Rocker printing 0- I
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
