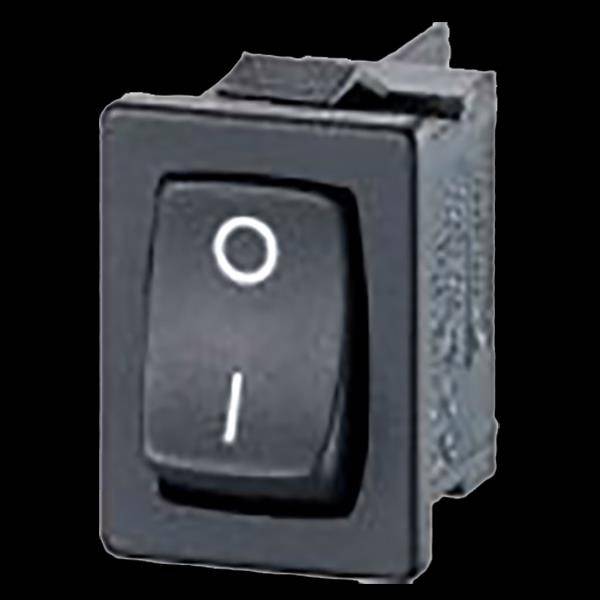

Bachmann 924185 Flip switch 924185 Off/On latch 1 pc(s)
EAN:
Part number:
Item no:
Product type
Flip switch
Casing/button colour
Black
Front panel cut-out
19 x 13 mm
Functions
latch
Lighting type
None
Datasheet (PDF)
Technical specifications
- Design: On/off switch
- Operating mode: Rocker
- Number of controls: 1
- Connection type: Spade connector
- Number of pins: 2-pole
- Mounting method: Other
- Installation depth: 19 mm
- With cover frame: No.
- Illumination: None
- Imprint/Identification: Code 0 and 1
- Nominal voltage: 250 V
- Nominal current 10 A
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: No.
- Surface protection: Untreated
- Design of surface: Matt
- Transparent: No.
- Control color: Black
- RAL number (similar) Control element: 9005
- Black enclosure
- RAL number (similar) Housing: 9005
- Product type
Flip switch
- Casing/button colour
Black
- Front panel cut-out
19 x 13 mm
- Functions
latch
- Lighting type
None
- Switch position
Off/On
- Print motif
0/I
- Material
Thermoplastic
- Connection
CEE 7/16 CEE plug
- Number of pins
2
- Max. temperature
125 °C
- Recess depth
19 mm
- Content
1 pc(s)
- Type
924185
- Factory colour
Black
- Material (details)
Plastic
- Type
Off switch
- Nominal voltage
250 V
- Operating voltage
250 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3134435 Bachmann 924185 Flip switch 924185 Off/On latch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3134435 Bachmann 924185 Flip switch 924185 Off/On latch 1 pc(s)
Description
Panel-mounted rocker switch series 3634 unilluminated color: Black 10 (4) A, 250V, 2-pole, on/off switch, T125° fitting dimension 19x13mm spade connections 4.8x0.8 mm marking white 0-I
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
