Bachmann 924186 Flip switch 924186 latch 1 pc(s)
EAN:
Part number:
Item no:
Product type
Flip switch
Casing/button colour
Black
Front panel cut-out
19 x 13 mm
Functions
latch
Lighting type
incl. lighting
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.71
5
6% = € 0.34
€ 5.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.71 / piece)
€ 5.71
plus VAT.
14-day return policy included
Technical specifications
- Design: On/off switch
- Operating mode: Rocker
- Number of controls: 1
- Connection type: Spade connector
- Number of pins: 2-pole
- Mounting method: Other
- Installation depth: 19 mm
- With cover frame: No.
- Lighting: Control
- Imprint/Identification: Code 0 and 1
- Nominal voltage: 250 V
- Nominal current 10 A
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: No.
- Surface protection: Untreated
- Design of surface: Matt
- Transparent: No.
- Color of the control: Green
- Black enclosure
- RAL number (similar) Housing: 9005
- Product type
Flip switch
- Switch/button features
illuminable
- Casing/button colour
Black
- Front panel cut-out
19 x 13 mm
- Functions
latch
- Lighting type
incl. lighting
- Colour
Green
- Print motif
0/I
- Material
Thermoplastic
- Connection
CEE 7/16 CEE plug
- Number of pins
2
- Max. temperature
125 °C
- Recess depth
19 mm
- Content
1 pc(s)
- Type
924186
- Factory colour
Black
- Material (details)
Plastic
- Type
Off switch
- Nominal voltage
250 V
- Operating voltage
250 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3134438 Bachmann 924186 Flip switch 924186 latch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3134438 Bachmann 924186 Flip switch 924186 latch 1 pc(s)
Description

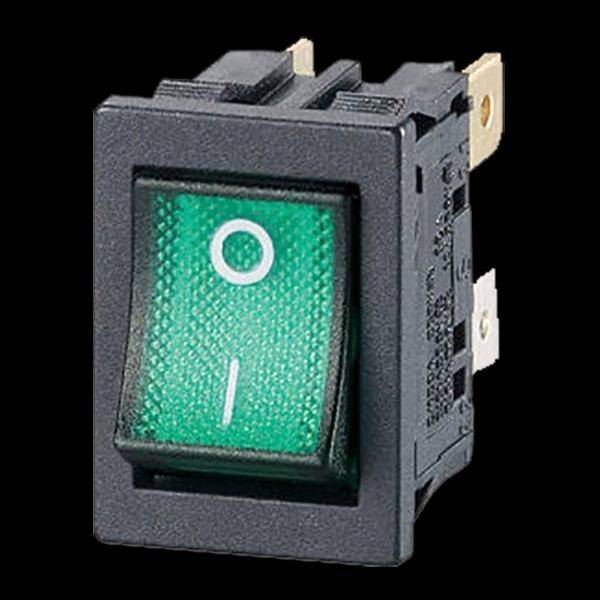

Panel-mounted rocker switch series 3634 illuminated color: Black/green 10 (4) A, 250V, 2-pin, on/off switch, T125° installation dimension 19x13mm Flat-plug connections 4.8x0.8 mm marking white 0-I
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
