Bachmann 924352 924352 Silicone enclosure
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Mounting type: Other
- Type of cover: Without
- Design cover: Without
- Type of door: Without
- Transparent cover / door: No.
- With lock: No.
- Mounting depth: 85 mm
- Colour: Other
- Suitable for lightning protection: No.
- Dim
(Ø x H) 79 mm x 100 mm
- Product type
Silicone enclosure
n.rel.
- Operating voltage
230 V
- Recess diameter
68 mm
- Recess depth
85 mm
- Rating per bulb
35 W
- Material
Silicone
- Width
100 mm
- Height
100 mm
- Depth
150 mm
- (Ø)
79 mm
GU10
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3159214 Bachmann 924352 924352 Silicone enclosure
User & Safety Instructions
User & Safety Instructions 3159214 Bachmann 924352 924352 Silicone enclosure
Description

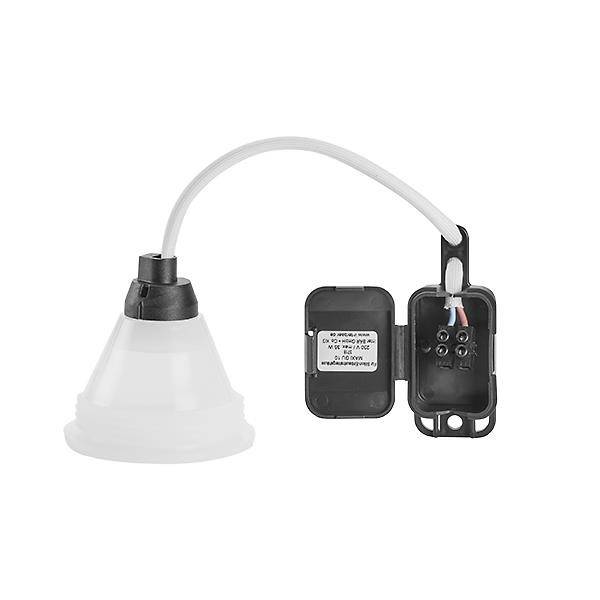

Silicon installation emitter casing MAXI, color: Transparent interBär series 1000, for high voltage halogen and LED illuminant, UV-, ozone-, resistant to aging, for GU10 halogen lamp D:51mm, 230V, 35W max or GU10 230V LED illuminant up to 5W, only suitable for halogen lamps which radiate the heat/discharge forward!, Do not use COOL BEAM illuminant!, mounting diameter: 68mm, installation depth: approx. 85mm with socket, outer dimensions: D:79mm, height: approx. 55mm (without socket)
