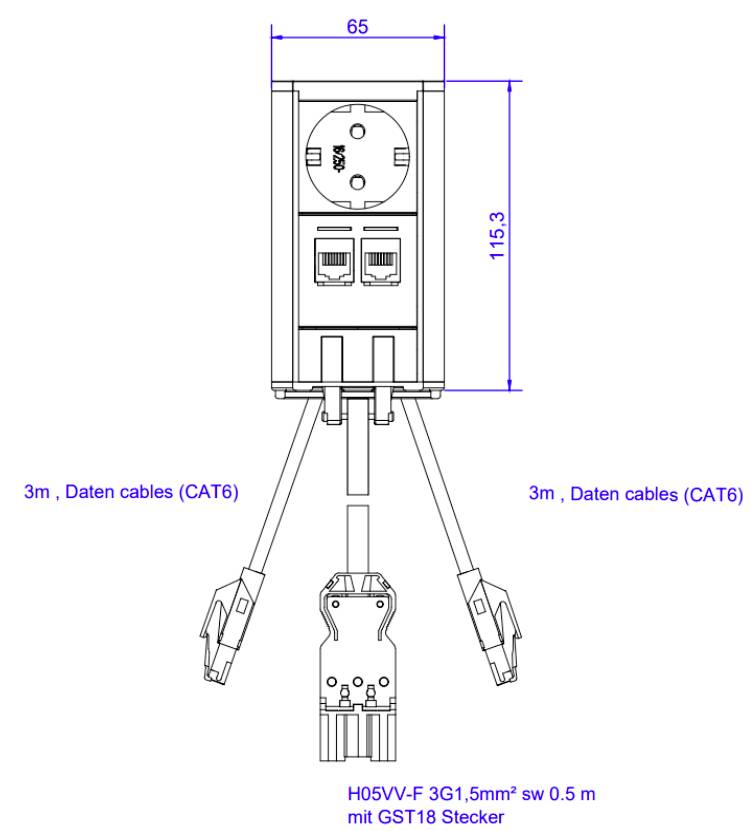

Stroke drawing/circuit diagram
Stroke drawing/circuit diagram
Bachmann 928.0040 Socket tower Black Wieland connector
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Housing shape: Other
- Number of Schuko sockets: 1
- With On / Off switch: No.
- FI switch: No.
- Line suppression filter: No.
- Surge protection: No.
- Nominal current: 16 A
- Wire cross-section: 1.5 mm²
- With cover: No.
- Material: Metal
- Material quality: Aluminium
- Halogen-free: No.
- Design of surface: Matt
- Colour: Aluminium
- Transparent: No.
- Protection class (IP) IP20
- Cable length 0.5 m.
- Turned central insert: Yes
- Angle of twisted central insert: 90°
- NEMA code: None
- Product type
Socket tower
- Light bulb features
Child safety
- Outlets
1
- Cable length
0.50 m
- Used at
Mains socket
- Material
Aluminium
- Plug type
Wieland connector
- Factory colour
Black
- Length
0.5 m
- Width
160 mm
- Height
160 mm
IP20
- Screen size diagonal (inches)
24 inch
- Halogen-free
No
- Material (details)
Metal
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3138030 Bachmann 928.0040 Socket tower Black Wieland connector
User & Safety Instructions
User & Safety Instructions 3138030 Bachmann 928.0040 Socket tower Black Wieland connector
Description
ELEVATOR Office variant Removable plug unit, aluminum profile anodized, 1xearthing contact socket-outlet black with increased contact protection 2xCAT6A 90° with 3M data cable incl. plug supply cable 0.5m H05VV-F3G1,5mm² black with GST18 plug, packed in a carton
