Buy Bachmann 930.180 Cramp Clamping range 50 up to 80 mm 1 pc(s)

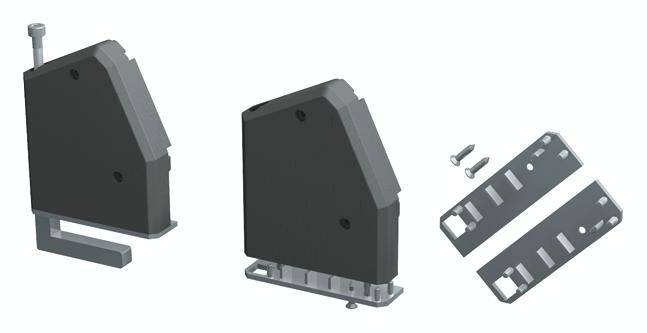

Assembly Instructions for a Mounting Bracket: Three Steps Showing the Attachment of Metal Parts with Screws.

Image similar

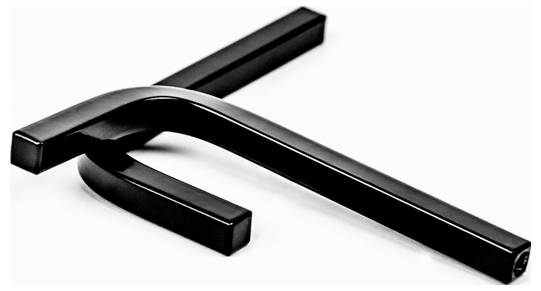

Two black metal bars intersect on a white surface, forming a minimalist and abstract composition.

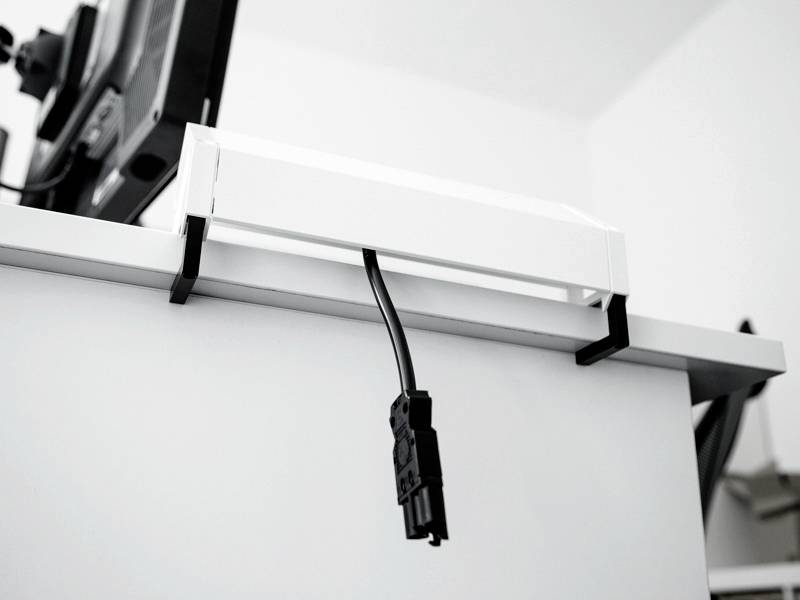

A white cable box mounted under a desk, with a black power cable hanging down, showing an organized workspace solution.

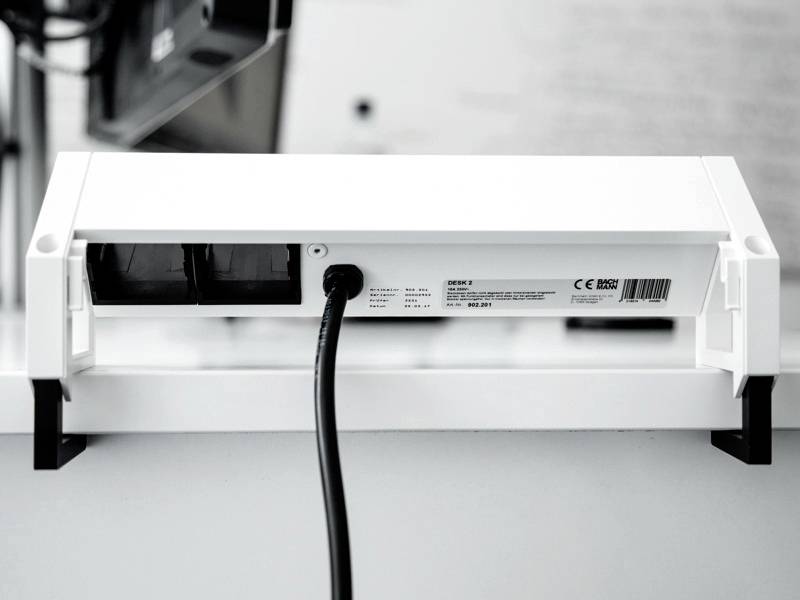

A white electrical device with outlets and a power cord is on a table. It's connected and mounted underneath a desk.

1/4

Image similar

Datasheet (PDF)

Unavailable

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Bachmann 930.180 Mounting Kit - extension cable

Technical specifications

Angle bracket DESK up to 80 mm f. table top thickness

Product type: Cramp

Factory colour: Multicolour

Clamping range: 50 up to 80 mm

Range (max.): 80 mm

Clamping range (min.): 50 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1838885 Bachmann 930.180 Cramp Clamping range 50 up to 80 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1838885 Bachmann 930.180 Cramp Clamping range 50 up to 80 mm 1 pc(s)

Description

To secure the various socket strips from the series DESK to the table, Bachmann accessories offer retaining brackets (930,180) in black for table panel thicknesses from 50 to 80 mm. The installation is simple and quick with the help of the accompanying screws, which are screwed into the DESK socket strip from above.

This text is machine translated.

Scope of delivery

2x holding angle long
Colour: Black painted similar to RAL9011
2x screws M5x45 mm
2x screws M5x60 mm
