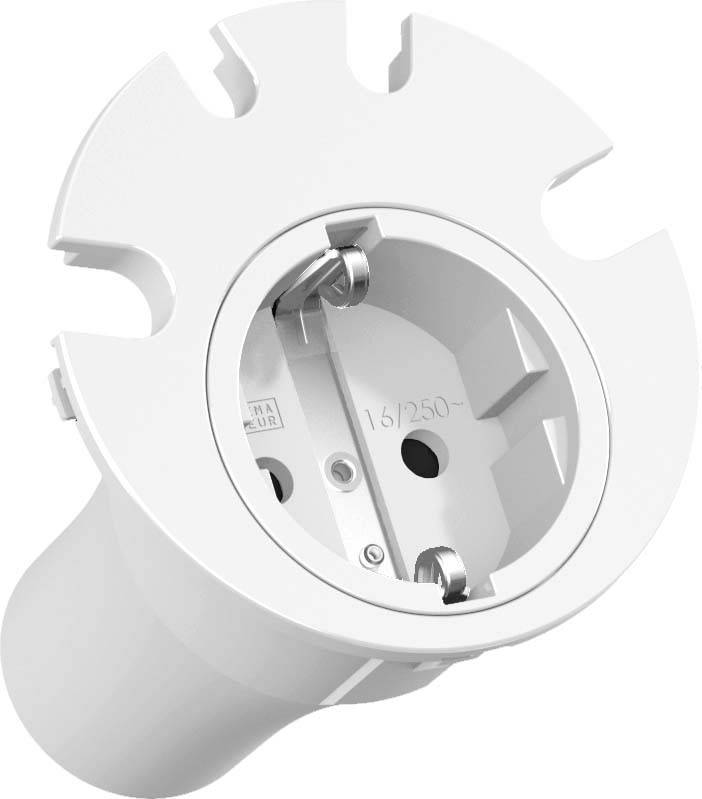

Bachmann 938101 Worktop socket White PG connector
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Housing shape: Other
- Number of Schuko sockets: 1
- With On / Off switch: No.
- FI switch: No.
- Line suppression filter: No.
- Surge protection: No.
- Nominal current: 16 A
- Wire cross-section: 1.5 mm²
- With cover: No.
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: Yes
- Design of surface: Matt
- Colour: white
- RAL number (similar): 9003
- Transparent: No.
- Protection class (IP) IP20
- Cable length 2 m.
- Turned central insert: Yes
- Angle of twisted central insert: 35°
- Product type
Worktop socket
- Light bulb features
Child safety
- Outlets
1
- Cable length
0 mm
- Mounting type
Surface-mount
- Material
Thermoplastic
- Plug type
PG connector
- Operating voltage
250 V AC
- Factory colour
White
IP20
- Cable design
Round
- Version
Cable
- Screen size diagonal (inches)
24 inch
- Halogen-free
Yes
- Cable use
C13/C14 appliances
- Material (details)
Plastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3138720 Bachmann 938101 Worktop socket White PG connector
User & Safety Instructions
User & Safety Instructions 3138720 Bachmann 938101 Worktop socket White PG connector
Description
LOOP IN color: White, similar to RAL9003 1xCEE7/3 socket with increased contact protection, 2x cable bushing D=7 mm, 2x cable bushing D=10 mm, 1xRing D=79 mm, supply line: 2.0m H05VV-F3G1,5mm² white with mounted CEE7/7 plug, with 2 fixing screws (2.5x16mm), packed in polybag.
