Bachmann 946.002 Cover set 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Bachmann cover plate TWIST 2 2xUTE 946,002
Technical specifications
- Design: Installation
- Flip up: No.
- Pull-out: No.
- Shape: Round
- Material: Other
- Colour: Stainless steel
- Length: 0 mm
- Width 0 mm
- Height: 42.5 mm
- Installation depth: 40 mm
- Diameter 115 mm
- Number of outlets French standard (type E): 2
- Surge protection: No.
- With built-in USB power supply: No.
- Nominal voltage: 250 V
- Protection class (IP) IP20
- Operating temperature 5 °C .35 °C.
- Type
Installation
- Product type
Cover set
- Factory colour
Silver (metallic)
- Width
0 mm
- Height
42.5 mm
- Length
0 mm
- Cable design
Round
- Cable length
2.00 m
- Version
Cable
IP20
- Keyboard layout
German, QWERTZ
- Cable use
C13/C14 appliances
- Material (details)
others
- Nominal voltage
250 V
- Operating voltage
250 V
- Outlets
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3138028 Bachmann 946.002 Cover set 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3138028 Bachmann 946.002 Cover set 1 pc(s)
Description

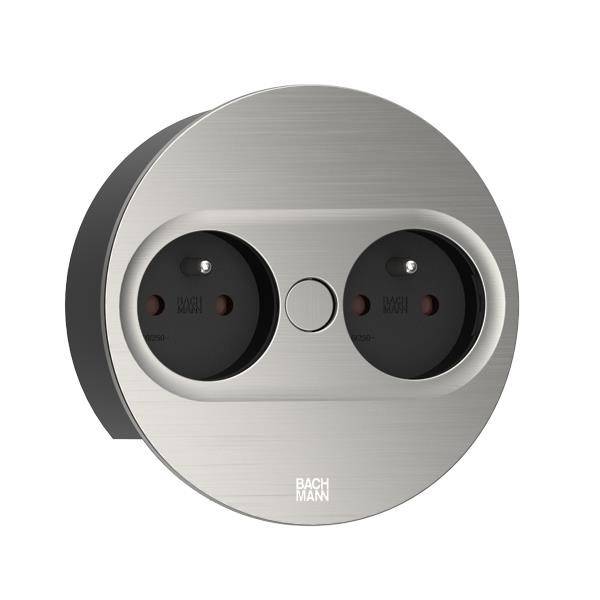

TWIST 2 metallic cover plate in high-grade steel-finish round 2xUTE France Sockets black with increased contact protection Feed 2,0m H05VV-F 3G1,5mm² black with wire-end sleeves and enclosed safety contact-mounting plug packed in the carton
