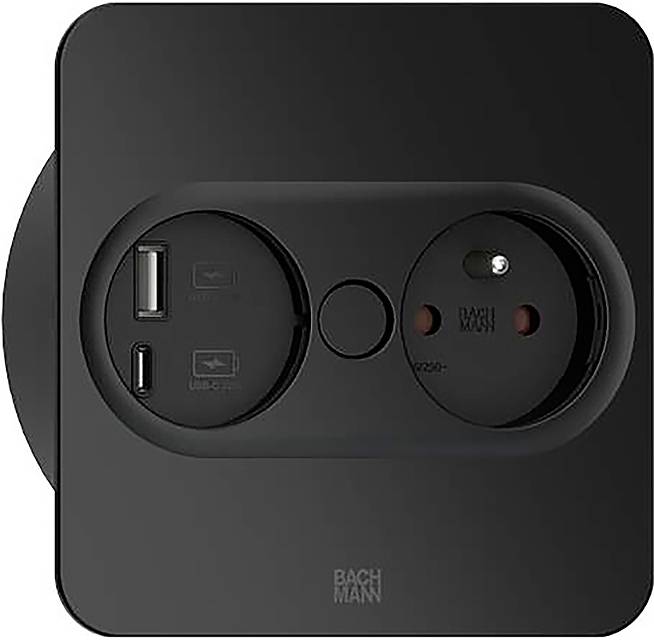

Bachmann 946.107 Cover Black PG connector
EAN:
Part number:
Item no:
Technical specifications
- Height: 42.5 mm
- Width 115 mm
- Installation depth: 40 mm
- Design: Installation
- Material: Zinc die-cast
- Colour, black
- Protection class (IP) IP20
- Length: 115 mm
- Nominal voltage: 250 V
- Diameter 0 mm
- Shape: Square
- Operating temperature 5 °C .35 °C.
- Surge protection: No.
- Flip up: No.
- Pull-out: No.
- Number of USB connections: 1
- Number of sockets French standard UTE type E: 1
- Product type
Cover
- Light bulb features
incl. USB
- Outlets
1
- Cable length
2.0 m
- Mounting type
Recess-mount
- Material
Zinc (die-cast)
- Plug type
PG connector
- Operating voltage
250 V
- Factory colour
Black
- Length
115 mm
- Width
115 mm
- Height
42.5 mm
- (Ø)
0 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3551234 Bachmann 946.107 Cover Black PG connector
Description
TWIST 2
Recessed mains outlet
With metallic cover plate square
Black matt, similar to RAL9005
30GE, semi-gloss
1xUTE socket France black
With increased contact protection
1xUSB A/C 22 W charger
Supply cable 2.0m H05VV-F 3G1,5mm² black
With wire-end sleeves and enclosed
Earthing contact installation plug
Packed in a carton
This text is machine translated.
Recessed mains outlet
With metallic cover plate square
Black matt, similar to RAL9005
30GE, semi-gloss
1xUTE socket France black
With increased contact protection
1xUSB A/C 22 W charger
Supply cable 2.0m H05VV-F 3G1,5mm² black
With wire-end sleeves and enclosed
Earthing contact installation plug
Packed in a carton
This text is machine translated.
