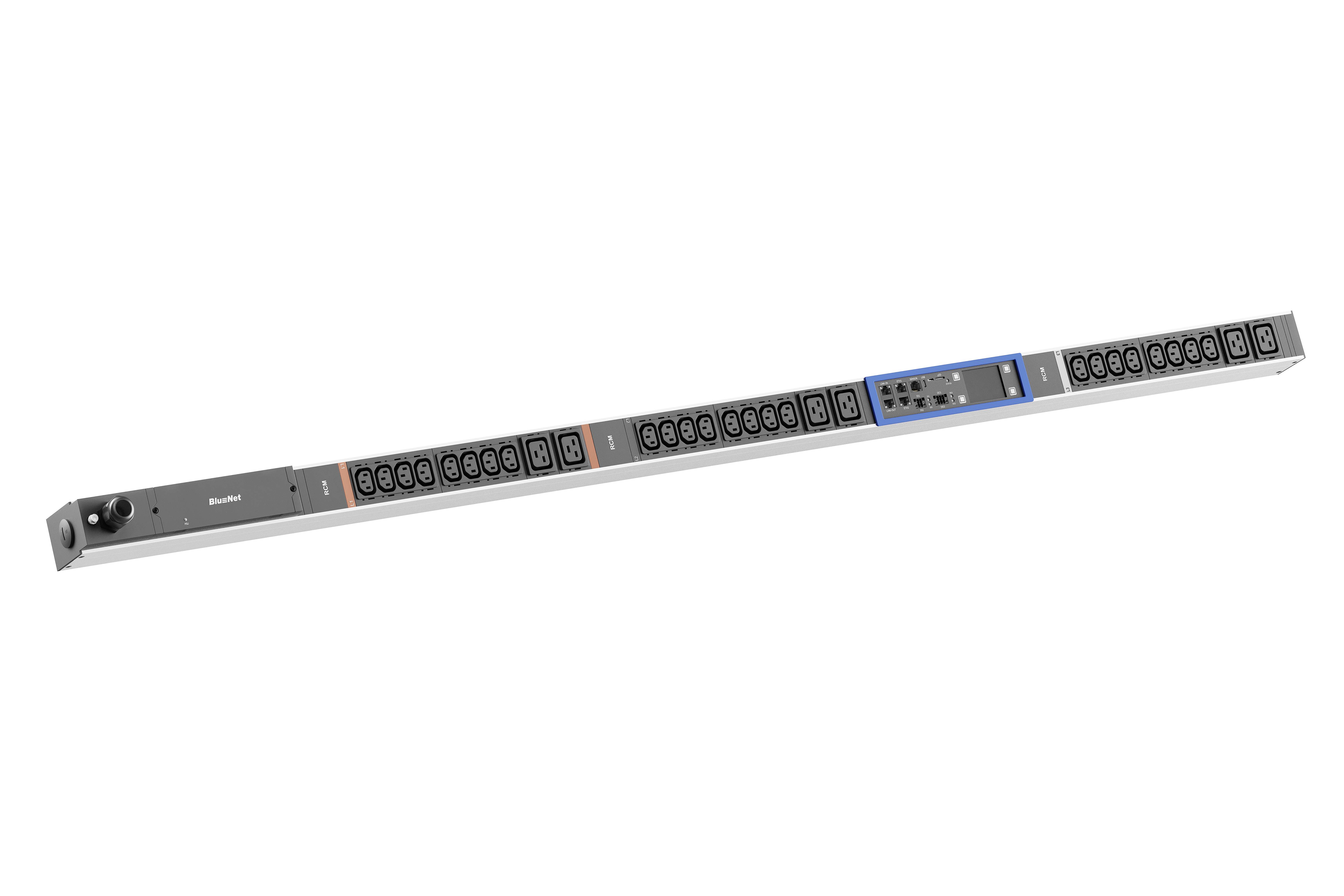

Bachmann BM0015591 Power strip Aluminium CEE connector 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Power strip
- Light bulb features
incl. LED screen
incl. display
incl. counter
incl. control function
Energy consumption metering
Temperature measurement
- Cable length
3 m
- Used at
Mains socket
- Mounting type
Upright
- Plug type
CEE connector
- No. of IEC C13 10A sockets
24
- No. of IEC C19 16A sockets
6
- Operating voltage
400 V
- Factory colour
Aluminium
- Length
1567.5 mm
- Width
56 mm
- Height
65 mm
- Nominal current
16 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3786143 Bachmann BM0015591 Power strip Aluminium CEE connector 1 pc(s)
Description
BN per Metered RCM Measurement per Phase Differential current measurement per Phase, Type B Input: 16 A / 400 V | 11 kW, Supply: 3.0 m | 2.5 mm², with CEE plug 16 A red Output: 24x C13 Cold device sockets, 6x C19 cold device sockets, Integrated function for measuring current, voltage, reactive, apparent, active power, Blind, apparent, active power, frequency and power factor In the operation exchangeable controller and exchangeable power adapter Integrated web server with web interface 1x Gbit/s (PoE) and 1x 10/100Mbit/s Ethernet connection Interface for PDU connection (up to 20 PDUs) 1x RJ45 interface for up to ten external sensors 1x USB-C connection (USB 2.0) 2.4 TFT color display frames for color coding (blue, red) Incl. Retaining bracket (L-shape, simple) packed in carton length 1825 mm
This text is machine translated.
This text is machine translated.
