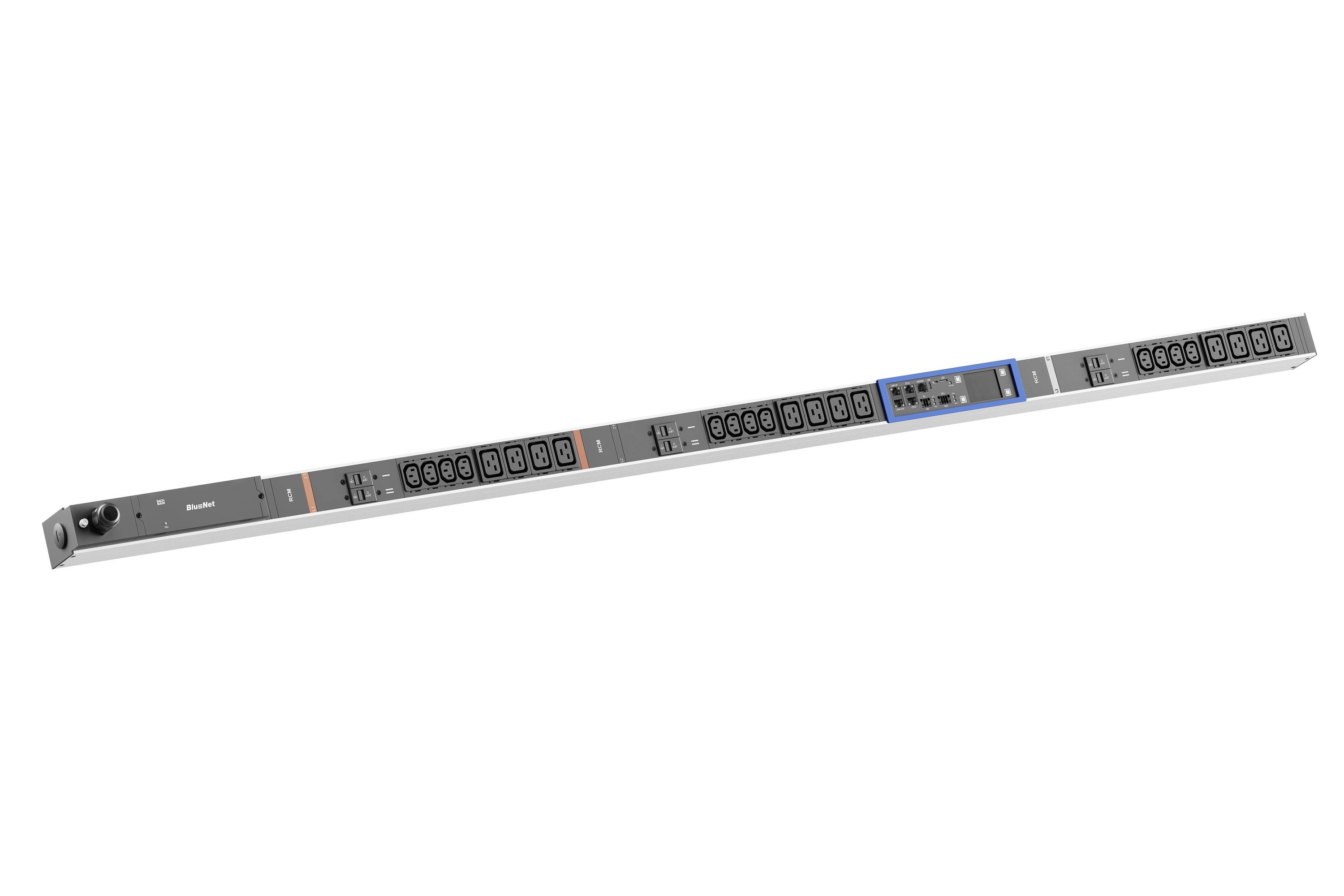

Bachmann BM0015600 Power strip Aluminium CEE connector 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Power strip
- Light bulb features
incl. LED screen
incl. display
incl. counter
incl. control function
incl. fuse
Energy consumption metering
Temperature measurement
- Cable length
3 m
- Used at
Mains socket
- Mounting type
Upright
- Plug type
CEE connector
- No. of IEC C13 10A sockets
12
- No. of IEC C19 16A sockets
12
- Operating voltage
400 V
- Factory colour
Aluminium
- Length
1800 mm
- Width
56 mm
- Height
65 mm
- Nominal current
32 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3786140 Bachmann BM0015600 Power strip Aluminium CEE connector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3786140 Bachmann BM0015600 Power strip Aluminium CEE connector 1 pc(s)
Description
BN per Metered RCM Measurement per Phase Differential current measurement per Phase, Type B Input: 32 A / 400 V | 22 kW, Supply: 3.0 m | 4 mm², with CEE plug 32 A red Output: 12x C13 low-power sockets, 12x C19 low-power sockets, 6x hydraulic-magnetic LS-switches 16 A, integrated function for measuring current, voltage, reactive, apparent, effective power, Blind, apparent, active power, frequency and power factor In the operation of exchangeable controller and exchangeable power adapter Integrated web server with web interface 1x Gbit/s (PoE) and 1x 10/100Mbit/s Ethernet connection Interface for PDU connection (up to 20 PDUs) 1x RJ45 interface for up to external sensors 1x USB-C connection (USB 2.0) 2.4 TFT color display Frame for color marking (blue, red) Incl. Retaining bracket (L-shape, simple) packed in carton length 1787 mm
