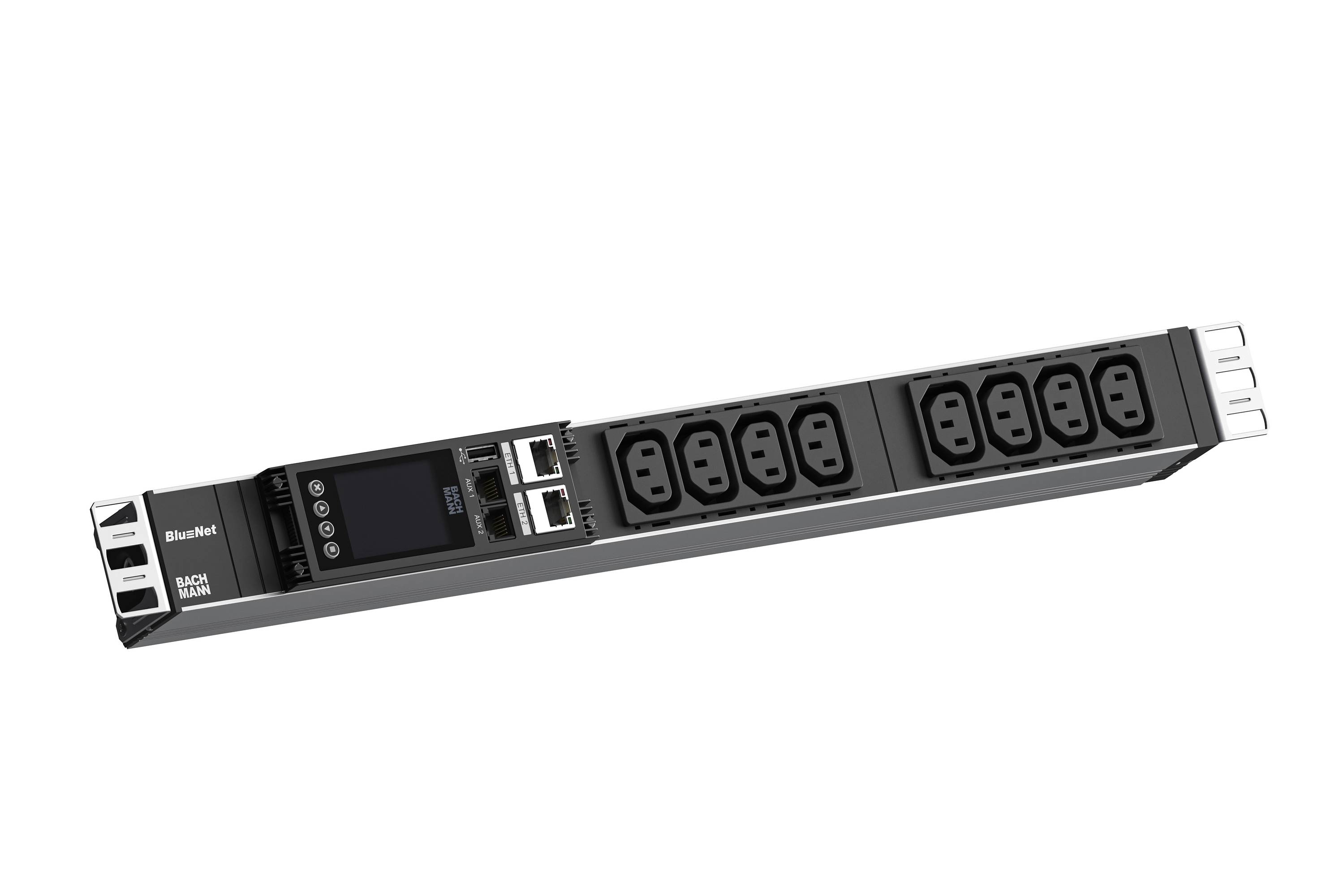

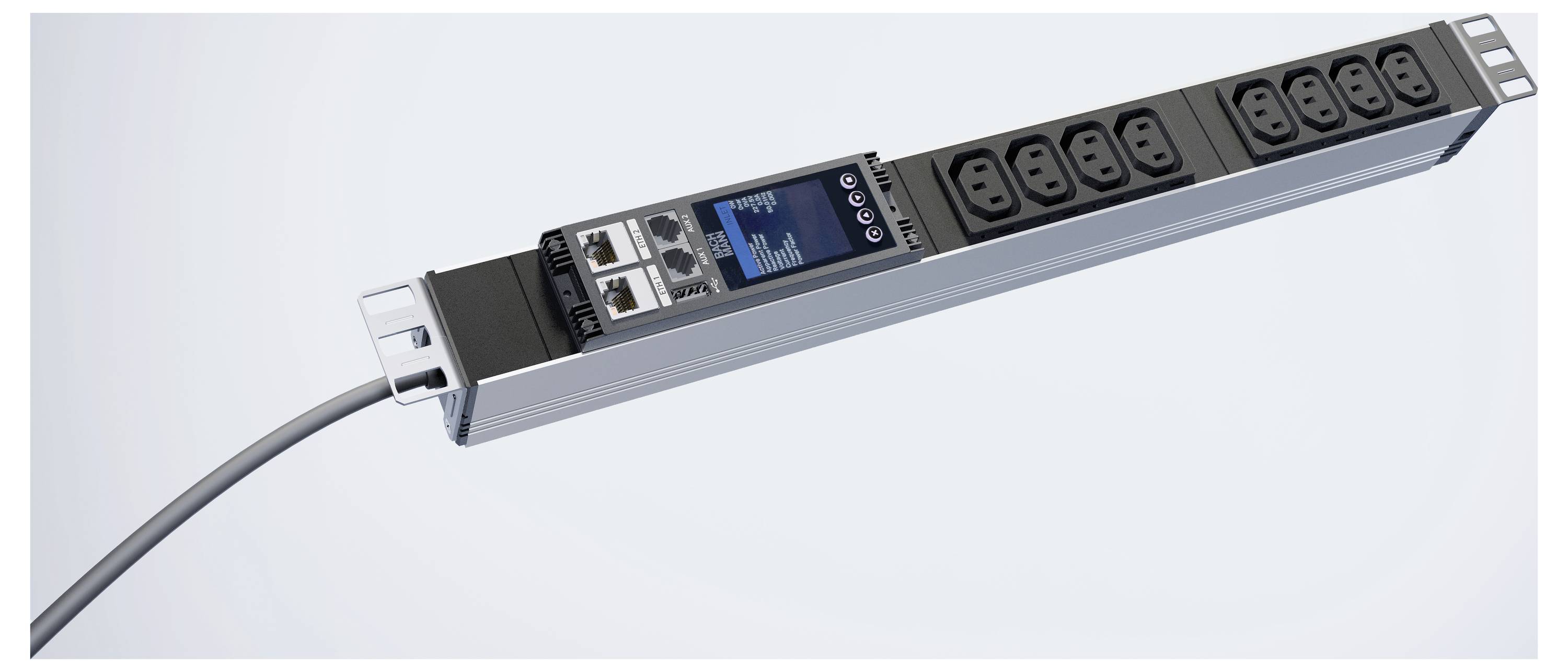

Bachmann BM0023691 19" power strip Aluminium PG connector 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
19" power strip
- Light bulb features
incl. display
incl. counter
Energy consumption metering
Temperature measurement
- Cable length
2 m
- Used at
Mains socket
- Mounting type
Horizontal
Upright
- Plug type
PG connector
- No. of IEC C13 10A sockets
8
- Operating voltage
230 V
- Factory colour
Aluminium
- Length
482.8 mm
- Width
437.4 mm
- Height
44 mm
- Nominal current
16 A
- UKCA
yes
Documents & Downloads
Security datasheet
Security datasheet 3786119 Bachmann BM0023691 19" power strip Aluminium PG connector 1 pc(s)
Description
BN ESSENTIAL Metered measurement per phase Input: 16A/230V | 3.6kW Output: 8xC13 0° Cold device socket Supply: 2.0m | 1.5mm² with CEE7/7 Safety contact angle plug Integrated function for measuring current, voltage, reactive, apparent, active power, Active power, frequency and power factor During operation exchangeable controller Integrated web server with web interface 2x 1Gbit/s Ethernet connection 1x USB-A connection 2x interface for sensors 2.0" TFT color display incl. bracket; with Bachmann logo Packed in carton
