Bachmann BM0023737 Socket White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

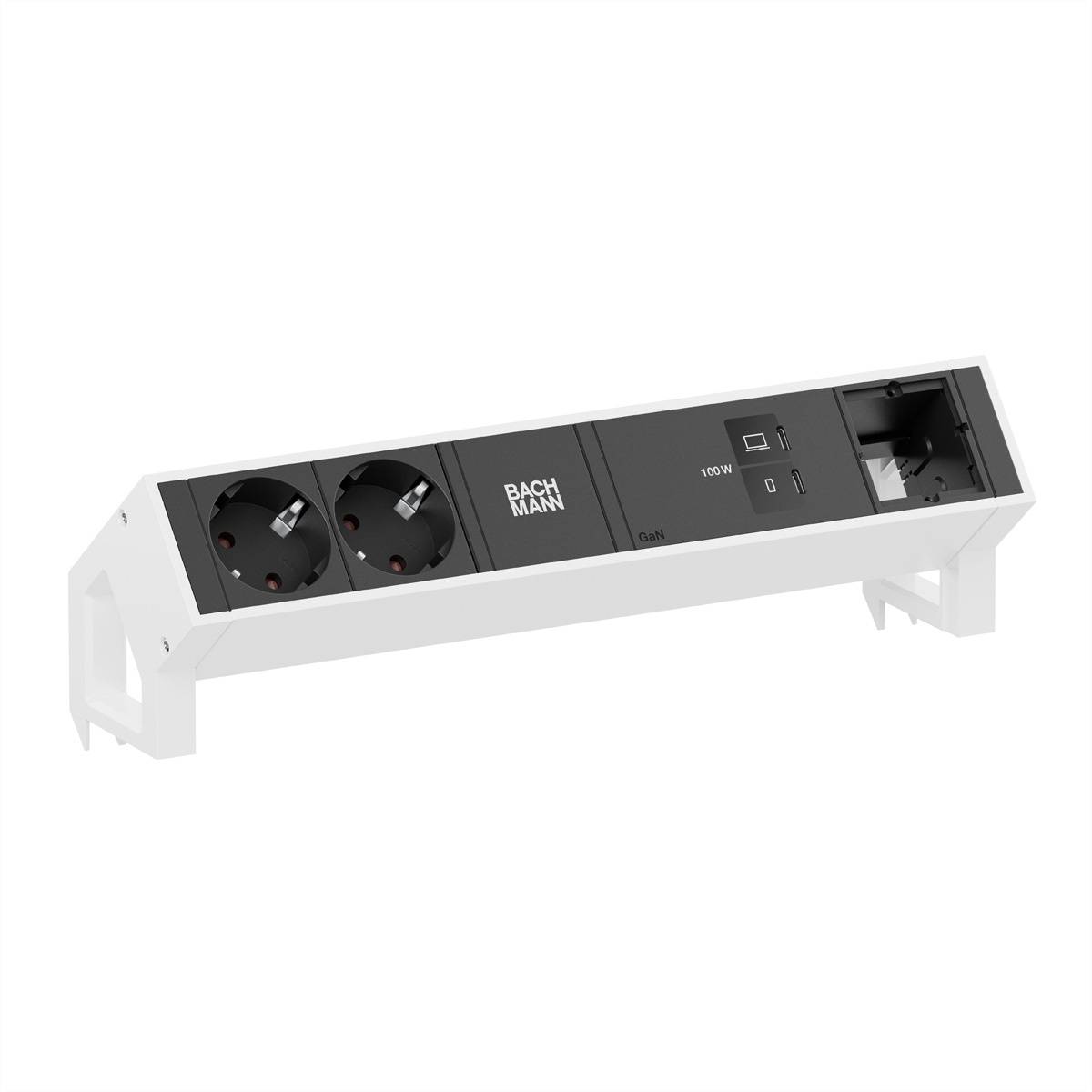

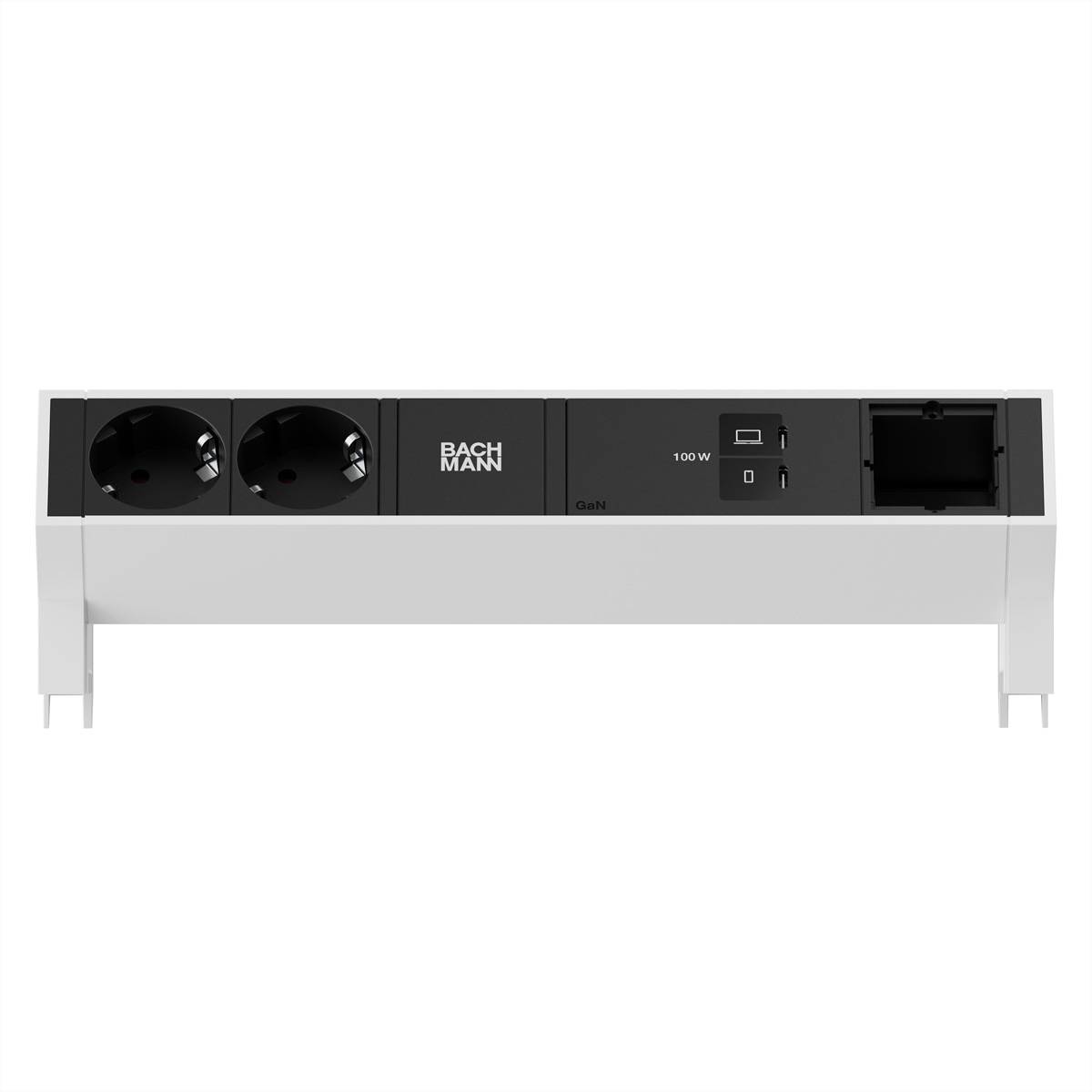

DESK2 earthing contact socket strip for table mounting 2xCEE7/3 1xUSB C/C 100W 1xCM 0.2m RAL9010...
- Installation of connection fields DESK2
- Design solution for living and working environment
- Suitable for Germany, Austria, Netherlands
- Flexible use in office, conference rooms, home-office
- Fixed to furniture with mounting brackets
Technical specifications
- Product group: Socket strips
- Product type: Built-in connection panels DESK2
- Colour: white
- Length 0.2 m
- Number of socket pots: 2
- Socket type: Protective contact, CEE 7/3, type-F
- USB charger: Yes
- Number of USB ports: 2
- Connection plug: Installation connector
- Plug type Wieland GST18
- With increased protection against accidental contact: Yes
- Regional use: Germany, Austria, Netherlands
- RAL color: Pure white 9010
- Height: 88 mm
- Width 85.5 mm
- Depth: 293.7 mm
- Weight: 800 g
- Packaging height 130 mm
- Package width 150 mm
- Packaging depth 460 mm
- Package weight: 1,175 kg
- Gross weight: 1.175
- Product type
Socket
- Outlets
2
- Factory colour
White
- Content
1 pc(s)
- Cable design
Round
- Cable length
0.20 m
- Version
Cable
- Type B
USB-C®
- Cable use
C13/C14 appliances
- Connection type
USB-C®
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3797405 Bachmann BM0023737 Socket White
User & Safety Instructions
User & Safety Instructions 3797405 Bachmann BM0023737 Socket White
Description
Bachmann DESK2 2xCEE7/3 1xUSB C/C BM0023737
<><>Similar figure.
Please pay attention to the technical data and the EAN of the product.
Manufacturer:Bachmann Name:DESK2 2xCEE7/3 5 1xUSB C/C 100W 1xCM 0.2mType:BM0023737Design:Building opening-up:nefold:neForm:neForm:rectangular Material:aluminum color:white length:7/3 .35 mmWidth:85.5 250<><>Bachmann 3 mm Height:88 mmNumber of safety sockets CEE 293.7 (type F): 2E07b Power supply interference / power supply further details
DESK 2 socket strip,
profile color: white, similar to RAL9010 painted,
end caps: white, similar to RAL9010 painted,
2xCEE7/3 35° outlets black,
with increased protection contact,<>
1xCustom module empty, brCable 0.2 m H05VV-F3G1,5mm² black with installation connector,
inc. Bracket,
with Bachmann logo,
packed in carton EAN: 4057298219535
Supplied: Bachmann DESK2 2xCEE7/3 1xUSB C/C 100W 1xCM 0.2m BM0023737, packing unit: 1 pcs., EAN: 4057298219535
This text is machine translated.
Scope of delivery
- Bachmann DESK2 2xCEE7/3 1xUSB C/C 100W
