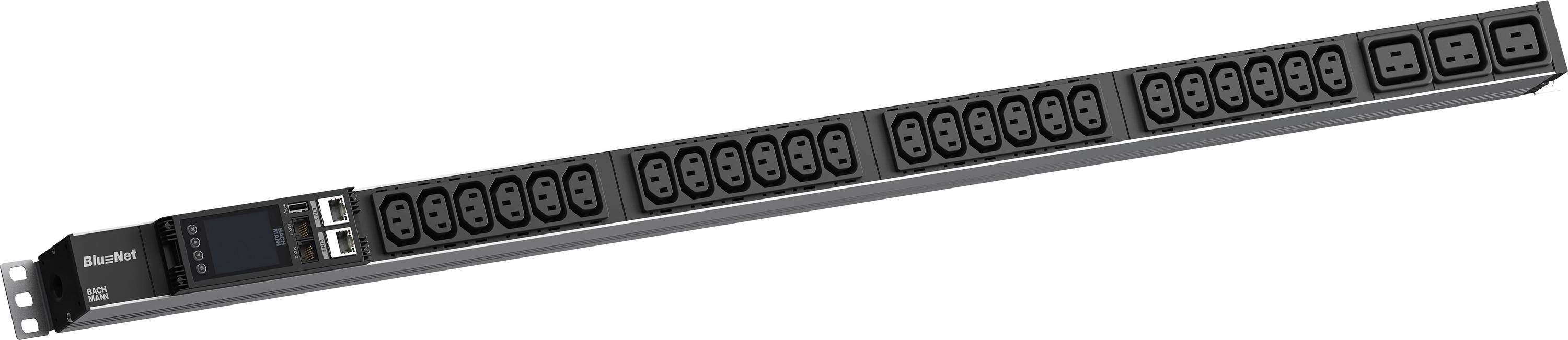

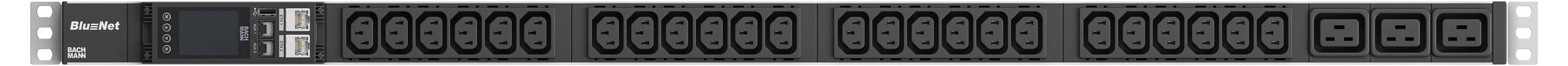

Bachmann BM0024222 Power strip Aluminium CEE connector 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Power strip
- Light bulb features
incl. display
incl. counter
Energy consumption metering
Temperature measurement
- Cable length
3 m
- Used at
Mains socket
- Mounting type
Upright
- Plug type
CEE connector
- No. of IEC C13 10A sockets
24
- No. of IEC C19 16A sockets
3
- Operating voltage
230 V
- Factory colour
Aluminium
- Length
1000.4 mm
- Width
44 mm
- Height
58.6 mm
- Keyboard layout
German, QWERTZ
- Nominal current
16 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3786123 Bachmann BM0024222 Power strip Aluminium CEE connector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3786123 Bachmann BM0024222 Power strip Aluminium CEE connector 1 pc(s)
Description
BN ESSENTIAL Metered measurement per phase Input: 16A/230V | 3.6kW Output: 24xC13 0° Cold device socket 3xC19 90° Cold device socket Supply: 3.0m | 2.5mm² with CEE 16A plug, blue Integrated function for measuring current, voltage, reactive, apparent, active power, Active power, frequency and power factor During operation exchangeable controller Integrated web server with web interface 2x 1Gbit/s Ethernet connection 1x USB-A connection 2x interface for sensors 2.0" TFT color display incl. bracket; with Bachmann logo Packed in carton
