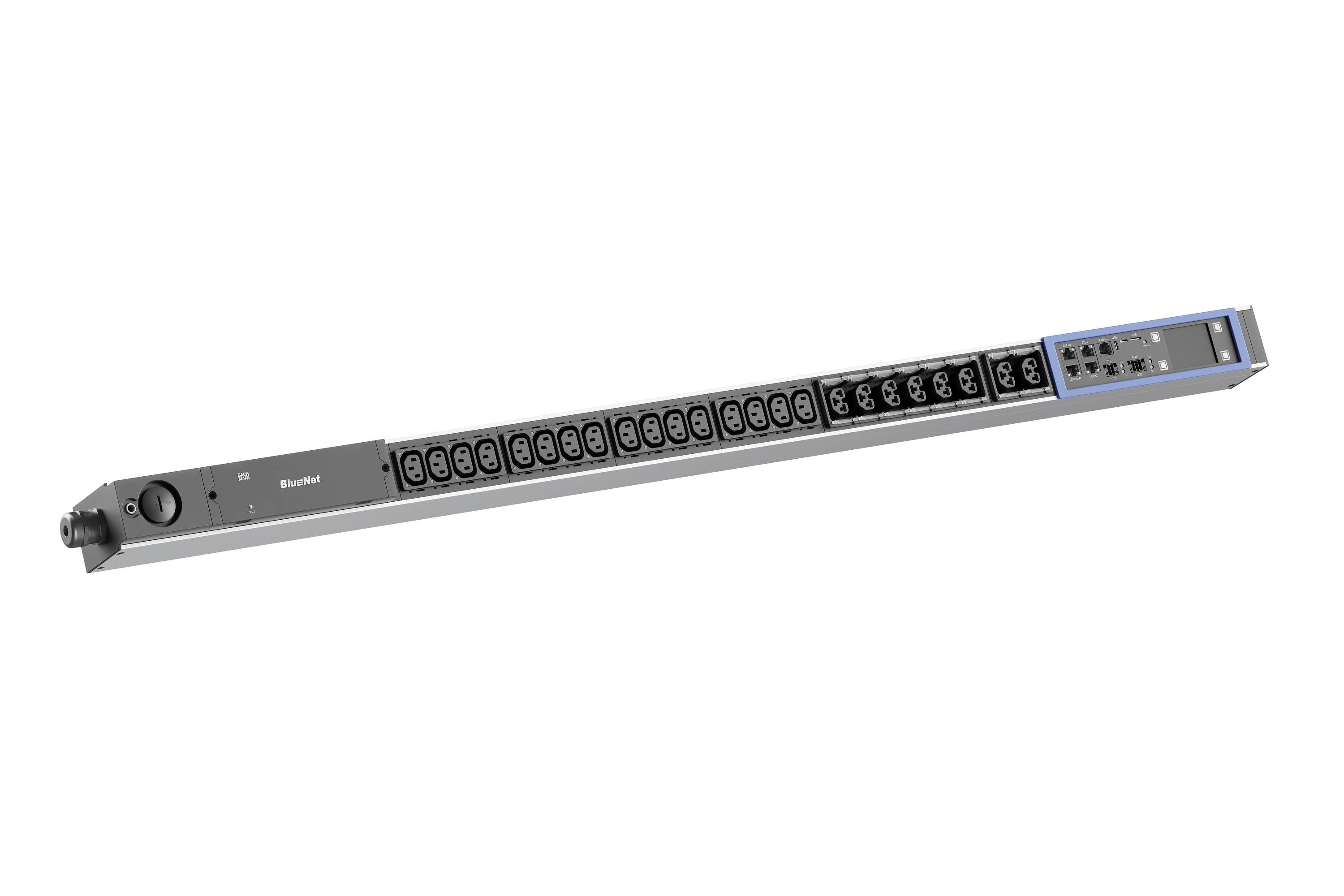

Bachmann BM0024767 Power strip (+ switch) Aluminium CEE connector 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Power strip (+ switch)
- Light bulb features
incl. LED screen
incl. display
incl. switch
incl. counter
incl. control function
Energy consumption metering
Temperature measurement
- Cable length
3 m
- Used at
Mains socket
- Mounting type
Upright
- Plug type
CEE connector
- No. of IEC C19 16A sockets
8
- Operating voltage
230 V
- Factory colour
Aluminium
- Length
1157 mm
- Width
56 mm
- Height
71 mm
- Nominal current
16 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3786165 Bachmann BM0024767 Power strip (+ switch) Aluminium CEE connector 1 pc(s)
Description
BN per switched measurement per phase, sockets switchable At any time can be upgraded to measure per socket by license Input: 16 A / 230 V | 3.6 kW, supply: 3.0 m | 2.5 mm², with CEE plug 16 A blue Output: 16x C13 low power sockets, 8x Combo C13/C15/C19/C21, integrated function for measuring current, voltage, reactive, apparent, active power, Blind, apparent, active power, frequency and power factor In the operation of exchangeable controllers and exchangeable power supply Integrated web server with web interface 1x Gbit/s (PoE) and 1x 10/100Mbit/s Ethernet connection Interface for PDU connections (up to 20 PDUs) 1x RJ45 interface for up to ten external sensors 1x USB-C connection (USB 2.0) 2.4 TFT-color display Frame for colored marking (blue, red) Incl. Bracket (L-shape, single)
This text is machine translated.
This text is machine translated.
