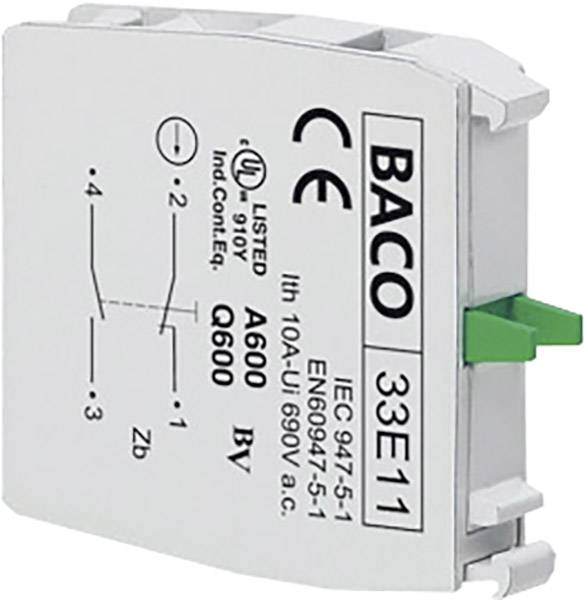

BACO 33E11 Contact 1 breaker, 1 maker momentary 600 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.55
5
6% = € 0.46
€ 7.09
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.55 / piece)
€ 9.24
-18 %
€ 7.55
plus VAT.
14-day return policy included
Highlights & Details
Contact elements 600 V 10 A
- 10-year guarantee.
Technical specifications
- Approval: EN, UL, Bureau Veritas, BBJ
- Product type
Contact
- Connection
Screws
- Type
1 x On/(Off) + 1 x Off/(on)
- Functions
momentary
- Contact type
1 breaker
1 maker
- Switching voltage
600 V
- Switching current (max.)
10 A
IP20

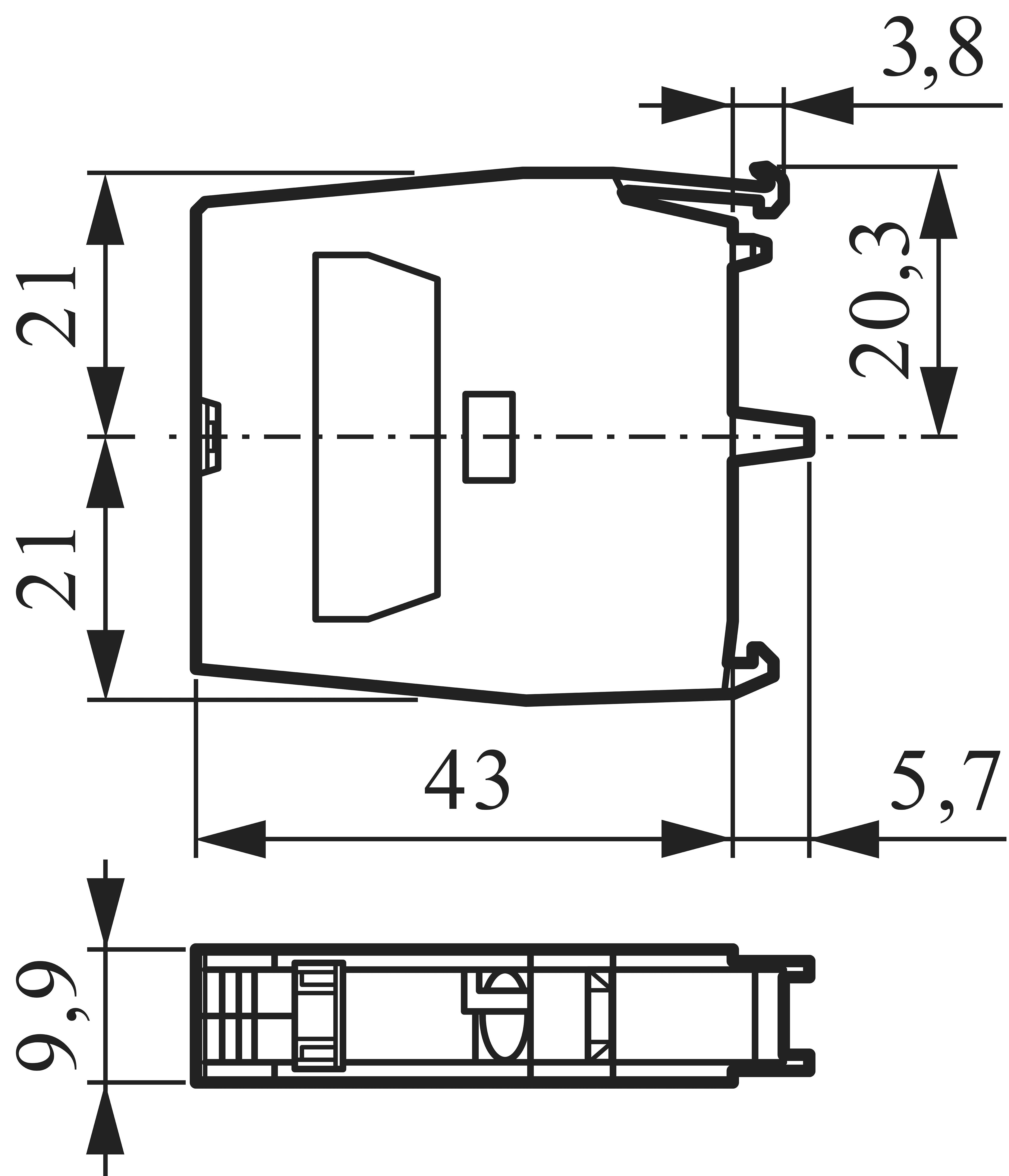

- Length
43 mm
- Width
9.9 mm
- Height
42 mm
- Mounting type
Front panel fixed
- Content
1 pc(s)
- Dim
(L x W x H) 43 x 9.9 x 42 mm
- Type
33E11
- Switching current
10 A
- Type
33E11
- Connection
Screw terminals
Documents & Downloads
Datasheet
Datasheet 701554 BACO 33E11 Contact 1 breaker, 1 maker momentary 600 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 701554 BACO 33E11 Contact 1 breaker, 1 maker momentary 600 V 1 pc(s)
Conformity certificate
Conformity certificate 701554 BACO 33E11 Contact 1 breaker, 1 maker momentary 600 V 1 pc(s)
Warranty Terms
Warranty Terms 701554 BACO 33E11 Contact 1 breaker, 1 maker momentary 600 V 1 pc(s)
Description
The contact element is connected on/via an adapter with the front element.
Scope of delivery
- Contact element
Hints
It is possible for the switch elements 33E01 and/or 33E10 to snap in 2 levels without any additional adapter.
