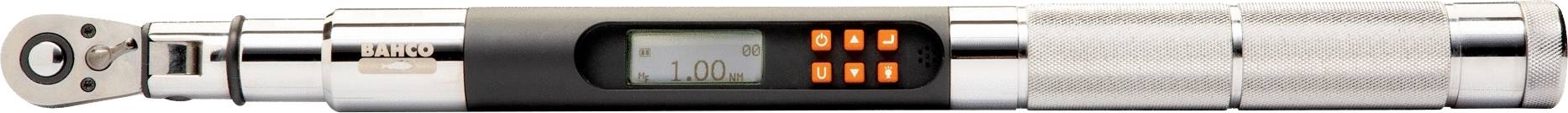

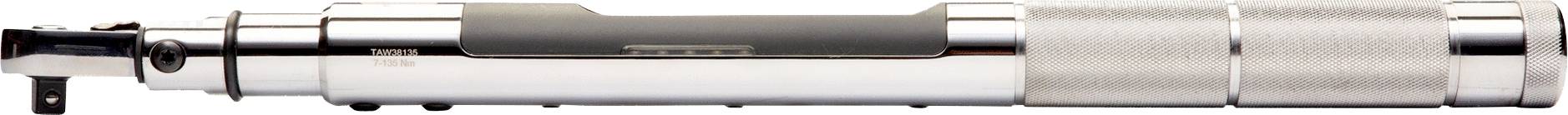

Bahco TAW38135 Torque wrench Ratcheting 3/8" (10 mm) 7 - 135 Nm
EAN:
Part number:
Item no:
Number
Total (€ 676.47 / piece)
€ 676.47
plus VAT.
Highlights & Details
Rotation angle/torque wrench 7-135 Nm

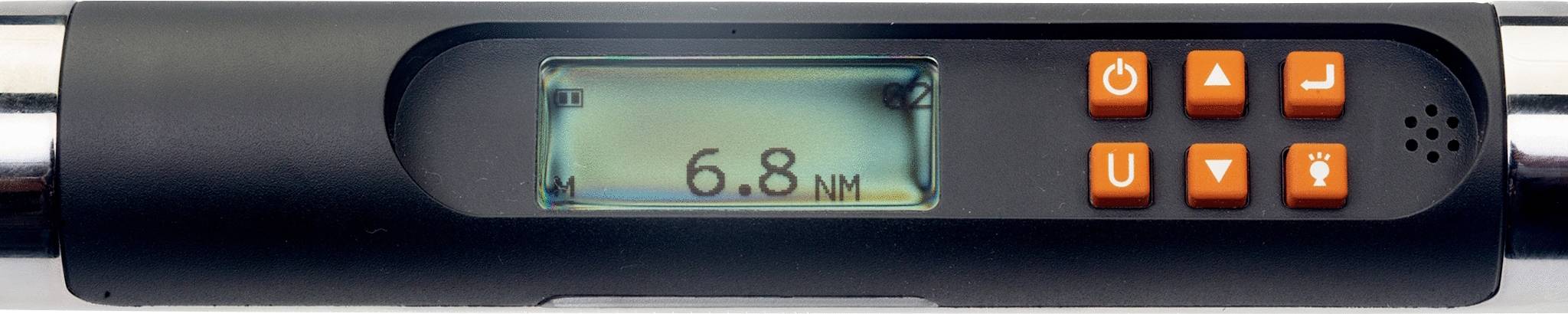

- Digital display
Technical specifications
- Product type
Torque wrench
- Features
Ratcheting
- Downforce
3/8" (10 mm)
- Torque (min.)
7 Nm
- Torque (max.)
135 Nm
- Trigger accuracy
3 %
- Length
475 mm
- Weight
1270 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2339624 Bahco TAW38135 Torque wrench Ratcheting 3/8" (10 mm) 7 - 135 Nm
Description
Torque units in Nm, kg.cm, dNm, ft.lb, lb.in, as well as angle of rotation in degrees
range from 7 to 800 Nm or from 5.1 to 590 ft.lb.
Application area: At temperatures from 5°C to 42°, both in right and left suit
Storage capacity of up to 50 measured values and 10 pre-settings
different measuring modes: Torque, rotation angle, torque with angle monitoring, rotation angle with torque monitoring, As well as default setting and working mode
Counter
Data and setpoint maintenance during battery change
Automatic switch-off with non-use adjustable
programmable recalibration warning
Operating instructions explains further configuration and setting options
Measuring accuracy ±2 % in right and ±3 % in left suit with 20 % to 100 % of the maximum torque

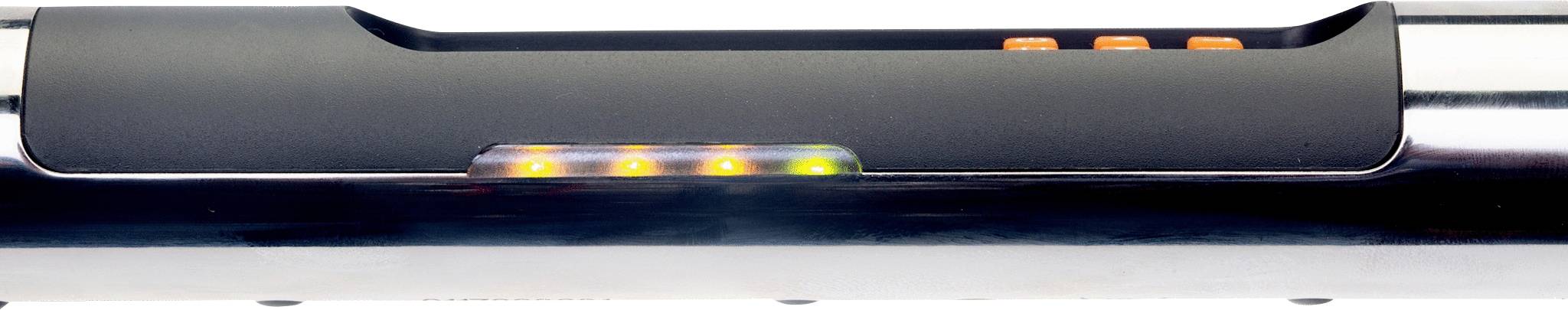

Optical (two LED bars & backlit display), Acoustic (warning tone) and tangible (vibration in the grip) Warning signal
Fixed ratchet with 40 teeth, 3/8", 1/2" and 3/4" square drive
Housing and socket completely made of metal, especially long-life and robust
Battery cover at the handle end with reverse thread prevents accidental opening (AA batteries included)
including declaration of conformity and CE certification according to international standards
2014/30/EC, ISO 6789
This text is machine translated.
range from 7 to 800 Nm or from 5.1 to 590 ft.lb.
Application area: At temperatures from 5°C to 42°, both in right and left suit
Storage capacity of up to 50 measured values and 10 pre-settings
different measuring modes: Torque, rotation angle, torque with angle monitoring, rotation angle with torque monitoring, As well as default setting and working mode
Counter
Data and setpoint maintenance during battery change
Automatic switch-off with non-use adjustable
programmable recalibration warning
Operating instructions explains further configuration and setting options
Measuring accuracy ±2 % in right and ±3 % in left suit with 20 % to 100 % of the maximum torque
Optical (two LED bars & backlit display), Acoustic (warning tone) and tangible (vibration in the grip) Warning signal
Fixed ratchet with 40 teeth, 3/8", 1/2" and 3/4" square drive
Housing and socket completely made of metal, especially long-life and robust
Battery cover at the handle end with reverse thread prevents accidental opening (AA batteries included)
including declaration of conformity and CE certification according to international standards
2014/30/EC, ISO 6789
This text is machine translated.
