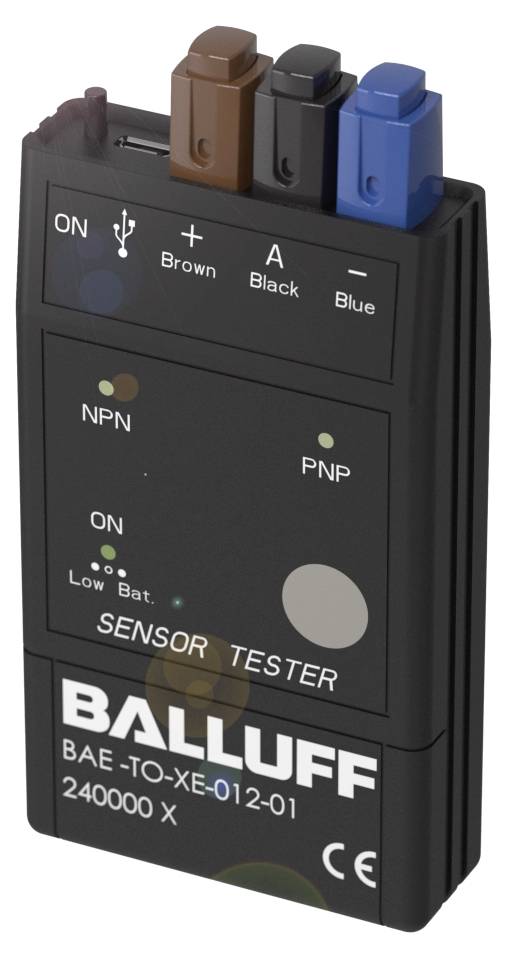

BALLUFF BAE00WH Sensor tester BAE00WH 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor tester
Type
BAE00WH
Connector
Clip
IP rating
IP40
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Balluff BAE00WH Electrical Accessories
- Connection: Clamp connection
- Functional principle: Tools in general electronic
- Use: 3-wire sensor DC PNP/NPN
- Design: Sensor tester
- Housing material: Plastic
Technical specifications
- Main features: Connection clip
- Design: Sensor tester
- Functional principle: Tools in general electronic
- Housing material: Plastic
- Use: 3-wire sensor DC PNP/NPN
- Additional features:
- Design: Sensor tester
- Use: 3-wire sensor DC PNP/NPN
- Dimensions 61 x 22 x 106 mm
- Housing material: Plastic
- Protection class: IP40
- Weight: 96.00 g
- Output voltage 24 VDC
- Battery weight 27 g
- Battery voltage 9 V
- Battery capacity 600 mAh
- Product type
Sensor tester
- Type
BAE00WH
- Connector
Clip
IP40
- Content
1 pc(s)
- Length
106.00 mm
- Width
61.00 mm
- Height
22.00 mm
- Enclosure material
Plastic
- Weight
96.00 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418649 BALLUFF BAE00WH Sensor tester BAE00WH 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418649 BALLUFF BAE00WH Sensor tester BAE00WH 1 pc(s)
Description
Operating principle = tool general electronic, design = sensor tester, connection = terminal connection, housing material = plastic, use = 3-wire sensor DC PNP/NPN
