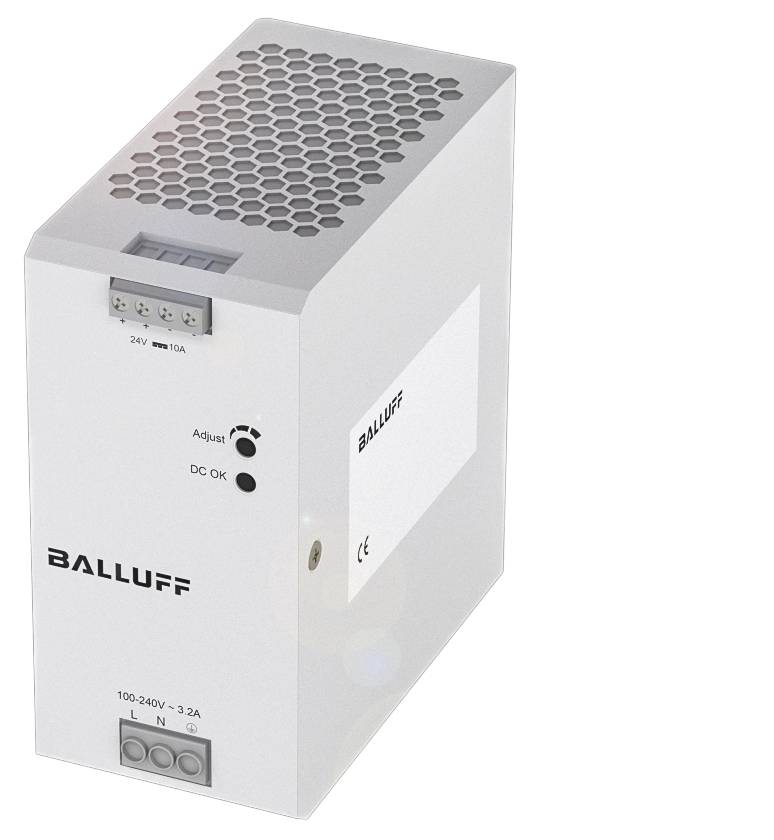

BALLUFF BAE0113 PSU BAE0113 1 pc(s)
EAN:
Part number:
Item no:
Product type
PSU
Type
BAE0113
Connector
Clip
IP rating
IP20
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Balluff BAE0113 Power supplies for control cabinets
- Connection: Terminal, 0.25...4 mm²
- Dimensions 60 x 123.6 x 117.6 mm
- Mounting: DIN rail mounting
- Design: DIN-rail
- Case material: metal
Technical specifications
- Main features:Dimension 60 x 123.6 x 117.6 mm
- Connection: Terminal, 0.25...4 mm²
- Design: DIN-rail
- Rated output voltage DC 24 V
- Rated output current 10 A
- Mounting: DIN rail mounting
- Input voltage: 100…240 V AC, single phase
- Case material: metal
- Protection class: IP20
- Ambient temperature -20...70 °C
- Additional features:
- Design: DIN-rail
- Dimensions 60 x 123.6 x 117.6 mm
- Mounting: DIN rail mounting
- Protection class: I
- Connection: 0.25...4 mm²
- Case material Mechanical characteristics: Metal
- Insulation resistance ≥ 100 MOhm
- Series: Standard
- DC LOW|DC ON
- Weight: 0.80 kg
- Rated output current 10 A
- Output voltage 24 VDC
- Short description: Switched-mode power supply
- Peak switch-on current: ≤ 20 A at 115 V AC|≤ 40 A at 230 V AC
- Operating frequency 47...63 Hz
- Output power max. 240 W
- Output voltage, tolerance +1 %
- DERATING: -1.67 %/°C > +40 °C / 115 VAC|-2.5 %/°C > +50 °C / 230 VAC
- Rated input current 2.8 A at 115 V AC|1.4 A at 230 V AC
- Input voltage 85 – 264 V AC
- Switch-on time max. 1 s.
- Settling time:2 ms
- Setting range: 22...28 V DC
- Input fuse T 6.3 A
- Insulation voltage input/output 3000 V AC
- Low-voltage SELV
- Mains failure bridging: ≥ 10 ms at 115 V AC|≥ 16 ms typ. At 230 V AC
- Efficiency typ.: 90 %
- Product type
PSU
- Type
BAE0113
- Connector
Clip
IP20
- Content
1 pc(s)
- Length
117.6 mm
- Width
60 mm
- Height
123.6 mm
- Enclosure material
Metal
- Weight
800 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417885 BALLUFF BAE0113 PSU BAE0113 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417885 BALLUFF BAE0113 PSU BAE0113 1 pc(s)
Description
Increase the performance level of your applications. Our short-circuit-proof power supplies for the control cabinet function as power supply units for automation. With a voltage of 24 V and including diagnostic outputs for integration in machine diagnostics, they have worldwide approvals. Dimensions = 60 x 123.6 x 117.6 mm, design = DIN-rail, fixing = DIN rail mounting, housing material = metal, connection = terminal, 0.25...4 mm², input voltage = 100,240 V AC, single phase, rated output voltage DC = 24 V, rated output current = 10 A, protection class = IP20, approval/conformity = CE, cURus, cULus, WEEE, ambient temperature = -20...70 °C
