BALLUFF BAM00AA Terminal block BAM00AA 1 pc(s)
EAN:
Part number:
Item no:
Product type
Terminal block
Type
BAM00AA
Content
1 pc(s)
Length
20.00 mm
Width
16.00 mm
Datasheet (PDF)
Highlights & Details

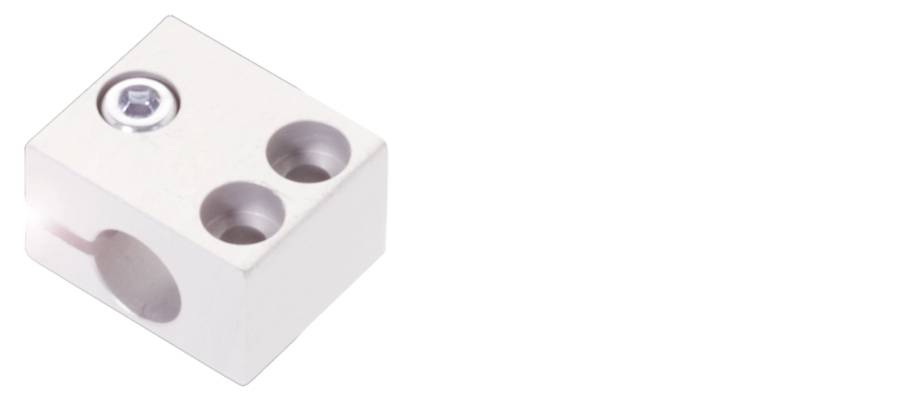

Balluff BAM00AA Universal holders
- Dimensions 16 x 12 x 20 mm
- Mounting: Screws, clamps
- Use: For sensors Ø8 mm
- For M08 sensors
- Design: Terminal block
- Material: Anodised aluminum
Technical specifications
- Main features:Dimension 16 x 12 x 20 mm
- Design: Terminal block
- Mounting: Screws, clamps
- Material: Anodised aluminum
- Use: For sensors Ø8 mm
- For M08 sensors
- Additional features:
- Design: Terminal block
- Functional principle: Clamp holder
- Delivery: Clamp mount (1x)|Screw ISO 4762-M3x16 (2x)|Screw ISO 4762-M3x8
- Application: For sensors Ø8 mm|for sensors M08
- Material: Aluminium
- Dimensions 16 x 12 x 20 mm
- Mounting: Screws, clamps
- Tightening torque clamp screw 1.1 Nm
- Surface protection: Anodised
- Product type
Terminal block
- Type
BAM00AA
- Content
1 pc(s)
- Length
20.00 mm
- Width
16.00 mm
- Height
12.00 mm
- Material
Aluminium
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3417910 BALLUFF BAM00AA Terminal block BAM00AA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417910 BALLUFF BAM00AA Terminal block BAM00AA 1 pc(s)
Description
Our mounting clamps, clamping blocks and retaining brackets offer positioning and fixing in one. They are characterized by simple installation and rugged design. They can choose between different sizes for sensor diameters from 3 mm to 36 mm, also for cubic designs, and versions such as aluminum, stainless steel and plastic. Our sensor holders can be combined with the mounting system BMS. The high-quality sensor holders are designed and tested for Balluff sensors. They are characterized by precision and durability. Version = clamp block, use=for sensors Ø8 mmfor sensors M08, material=aluminum anodized, dimension=16 x 12 x 20 mm, fixing=screws, clamps
