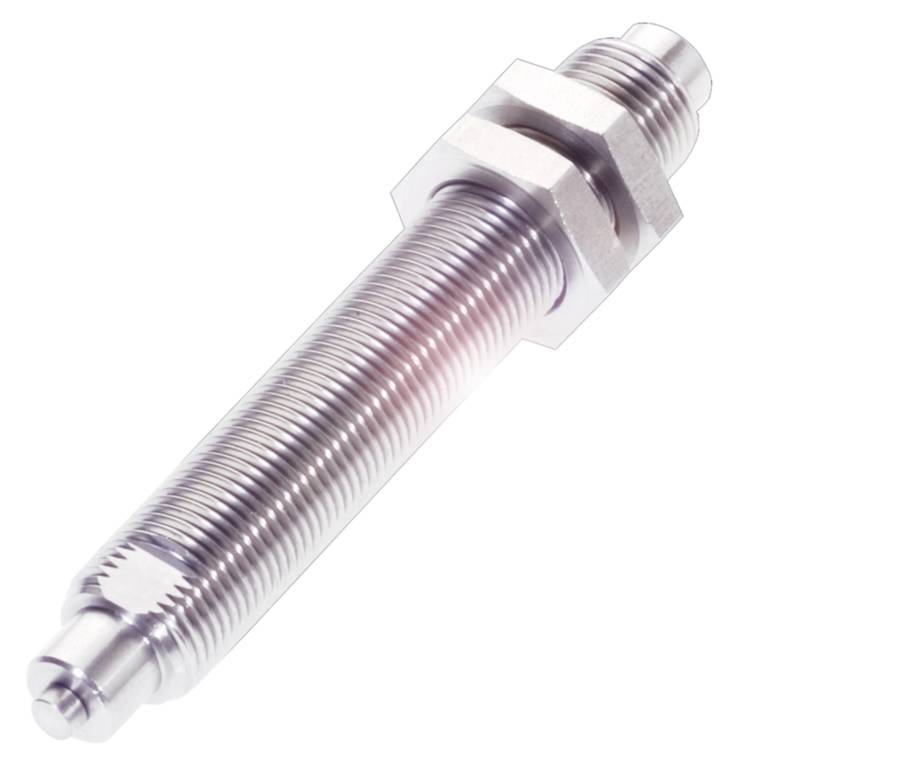

BALLUFF BAM00AZ Plunger probe BAM00AZ 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plunger probe
Type
BAM00AZ
Content
1 pc(s)
Length
78.00 mm
(Ø)
12 mm
Datasheet (PDF)
Highlights & Details
BALLUFF BAM00AZ PLUNGER PROBE solutions
- Dimensions: Ø 12 x 78 mm
- Attachment: M12 screws
- Application: For inductive sensors Ø8
- For inductive BES M8 sensors
- Material: Stainless steel
- Short description: Fixed stop
Technical specifications
- Main features:Dimensions: Ø 12 x 78 mm
- Attachment: M12 screws
- Short description: Fixed stop
- Material: Stainless steel
- Ambient temperature: -25 to 100 °C
- Application: For inductive sensors Ø8
- For inductive BES M8 sensors
- Additional features:
- Delivery: Fixed stop|Nut M12x1 (2x)
- Application: For inductive sensors Ø8|for inductive sensors BES M8
- Material: Stainless steel
- Dimensions: Ø 12 x 78 mm
- Attachment: M12 screws
- Tightening torque 25 Nm
- Size M12x1
- Ambient temperature: -25 to 100 °C
- Mechanical life: 0.5 MIO. Switching cycles
- Tightening torque max. 25 Nm
- Clamp system: Screws|clamps
- Short description: Fixed stop
- Striking force F max. 400 N
- Spring force 4 N
- Spring travel 3 mm
- Product type
Plunger probe
- Type
BAM00AZ
- Content
1 pc(s)
- Length
78.00 mm
- (Ø)
12 mm
- Material
Stainless steel
- Max. temperature
100 °C
- Min. temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417896 BALLUFF BAM00AZ Plunger probe BAM00AZ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417896 BALLUFF BAM00AZ Plunger probe BAM00AZ 1 pc(s)
Description
Our compact Pluger Probe offers rugged design for harsh applications. It is suitable for Ideal for welding devices and punching applications as well as for applications with controlled workpiece ejection. The complete set includes sensor, housing and springs. You can choose between different types of plunger and three spring voltages: The two-piece housing simplifies maintenance. Short description=fixed stop, use=for inductive sensors Ø8für BES M8 inductive sensors, material=stainless steel, dimension=Ø 12 x 78 mm, fixing=screws M12, ambient temperature=-25...100 °C
