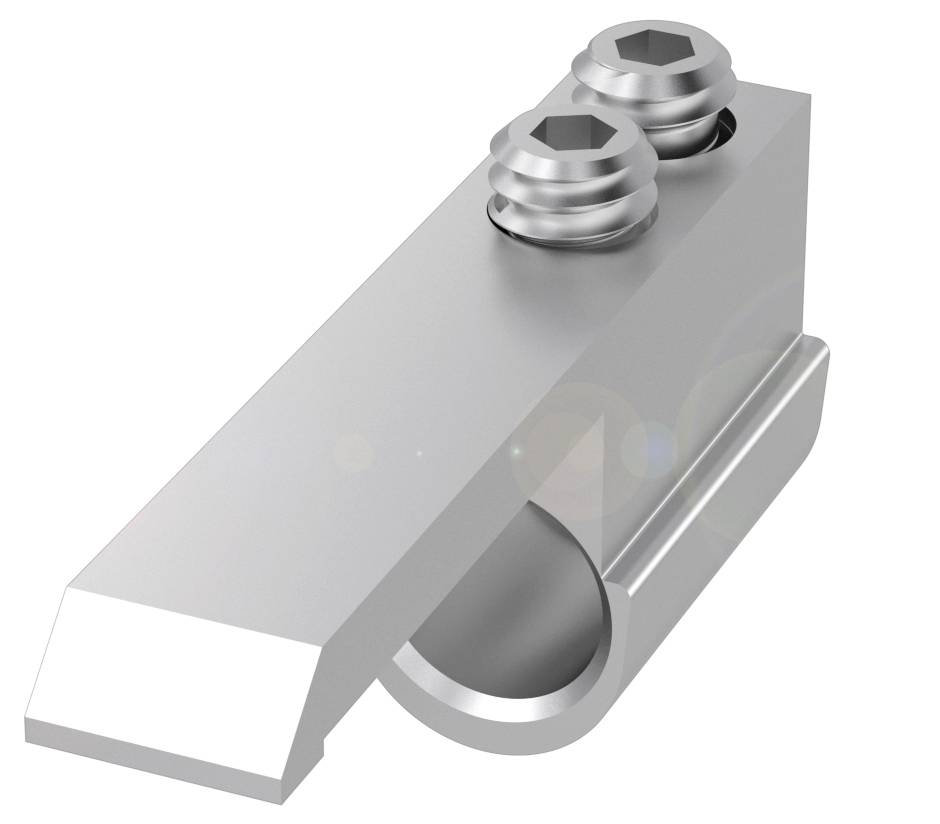

BALLUFF BAM00L1 Support bracket BAM00L1 1 pc(s)
EAN:
Part number:
Item no:
Product type
Support bracket
Type
BAM00L1
Content
1 pc(s)
Material
Nickel sliver
UKCA
not relevant
Datasheet (PDF)
Highlights & Details
Balluff BAM00L1 bracket for magnetic sensors
- Functional principle: BMF retaining bracket
- Ambient temperature -40...85 °C
- Use: For magnetic field sensors BMF 303
- Application: Pneumatic cylinder with integral groove
- Material: Nickel silver
Technical specifications
- Main features:Application: Pneumatic cylinder with integral groove
- Functional principle: BMF retaining bracket
- Material: Nickel silver
- Ambient temperature -40...85 °C
- Use: For magnetic field sensors BMF 303
- Additional features:
- Functional principle: BMF retaining bracket
- Scope of delivery: Mounting screw|Retaining bracket|angular screwdriver
- Use: For magnetic field sensors BMF 303
- Material: Nickel silver
- Tightening torque 0.2 Nm
- Size: Nut 10 (Festo)|C-Nut (SMC/Bimba)
- Ambient temperature -40...85 °C
- Tightening torque clamp screw 0.2 Nm
- Application: Pneumatic cylinders with integral|groove
- Sensor mounting: Threaded pin ISO 4029 M2x3-A2|angular screwdriver ISO 2936|0.9
- Mounting bracket: Threaded pin ISO 4029 M2x5-A2|angular screwdriver ISO 2936|0.9
- Product type
Support bracket
- Type
BAM00L1
- Content
1 pc(s)
- Material
Nickel sliver
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3418290 BALLUFF BAM00L1 Support bracket BAM00L1 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418290 BALLUFF BAM00L1 Support bracket BAM00L1 1 pc(s)
Description
Our sensor holders can be combined with the mounting system BMS. The high-quality sensor holders are designed and tested for Balluff magnetic field sensors. They are characterized by precision and durability. Functional principle=BMF retaining bracket, application=pneumatic cylinder with integral groove, use=for magnetic field sensors BMF 303, material=nickel silver, ambient temperature=-40...85 °C
