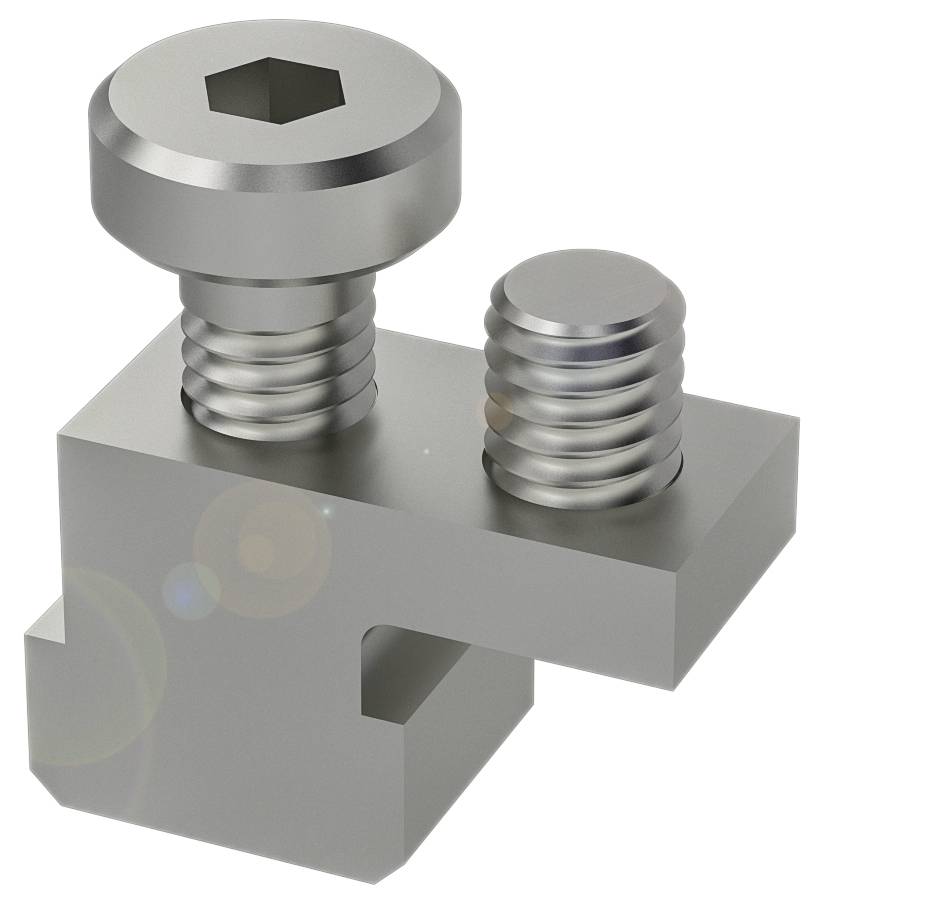

BALLUFF BAM00LH Support bracket BAM00LH 1 pc(s)
EAN:
Part number:
Item no:
Product type
Support bracket
Type
BAM00LH
Content
1 pc(s)
Material
Brass
UKCA
yes
Datasheet (PDF)
Highlights & Details
Balluff BAM00LH angle bracket for magnetic sensors
- Functional principle: BMF retaining bracket
- Ambient temperature -40...85 °C
- Use: For magnetic field sensors BMF 305
- Application: Pneumatic cylinder with integral groove
- Material nickel-plated brass
Technical specifications
- Main features:Application: Pneumatic cylinder with integral groove
- Functional principle: BMF retaining bracket
- Material nickel-plated brass
- Ambient temperature -40...85 °C
- Use: For magnetic field sensors BMF 305
- Additional features:
- Functional principle: BMF retaining bracket
- Scope of delivery: Fastening part|mounting bracket
- Use: For magnetic field sensors BMF 305
- Material: Brass
- Tightening torque 1.5 Nm
- Mounting size T-groove
- Ambient temperature -40...85 °C
- Tightening torque clamp screw 1.5 Nm
- Surface protection: Nickel-plated
- Application: Pneumatic cylinders with integral|groove
- Sensor mounting: Cheese head screw DIN 7984|M3x10-A2|angular screwdriver ISO 2936|2.0
- Mounting bracket: Threaded pin ISO 4029 M3x5-A2|angular screwdriver ISO 2936|1.5
- Product type
Support bracket
- Type
BAM00LH
- Content
1 pc(s)
- Material
Brass
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417898 BALLUFF BAM00LH Support bracket BAM00LH 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417898 BALLUFF BAM00LH Support bracket BAM00LH 1 pc(s)
Description
Our sensor holders can be combined with the mounting system BMS. The high-quality sensor holders are designed and tested for Balluff magnetic field sensors. They are characterized by precision and durability. Functional principle = BMF retaining bracket, application = pneumatic cylinder with integral groove, use = for magnetic field sensors BMF 305, material = nickel-plated brass, ambient temperature = -40...85 °C
