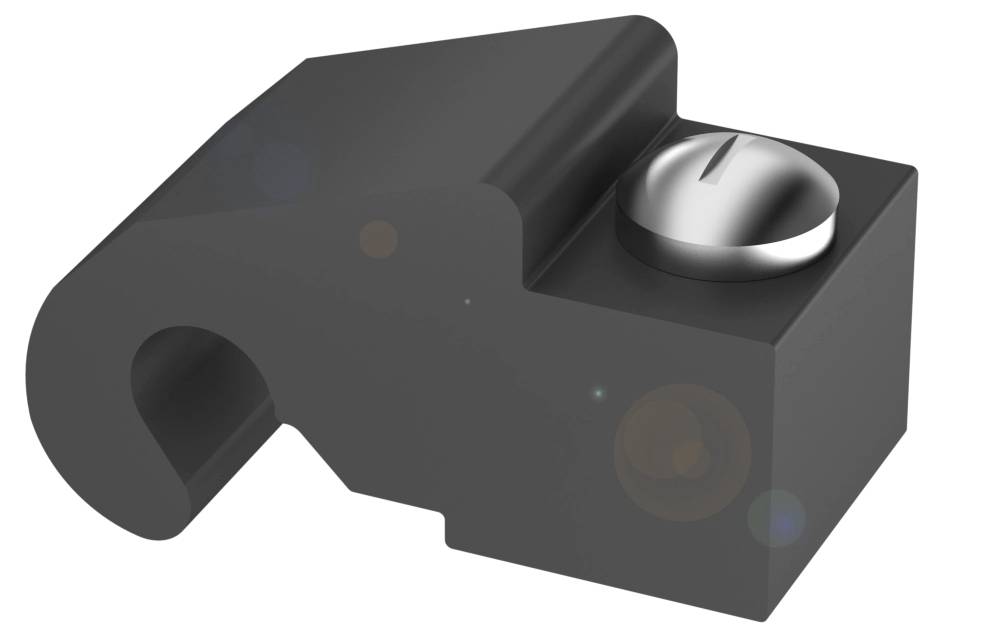

BALLUFF BAM00LL Support bracket BAM00LL 1 pc(s)
EAN:
Part number:
Item no:
Product type
Support bracket
Type
BAM00LL
Content
1 pc(s)
Material
PBTP
UKCA
yes
Datasheet (PDF)
Highlights & Details
Balluff BAM00LL Angle bracket for magnetic sensors
- Functional principle: BMF retaining bracket
- Ambient temperature: -25 to 70 °C
- Use: For magnetic field sensors BMF 305
- Application: With retaining bracket BMF 21-HW-8 for pneumatic cylinders with tie rod diameter 4.3...6.5 mm.
- With retaining bracket BMF 21-HW-11 for cylinders with piston diameter 8-80 mm.
- Mounting with hose clamp.
- With retaining bracket BMF 21-HW-10 for pneumatic cylinders with tension link Ø4.3…17 mm and pneumatic cylinders with housing integrated drawbar (profile); profile width 10…17 mm.
- Material PBTP
- GF30
Technical specifications
- Main features:Application: With retaining bracket BMF 21-HW-8 for pneumatic cylinders with armature diameter 4.3...6.5 mm.
- With retaining bracket BMF 21-HW-11 for cylinders with piston diameter 8-80 mm.
- Mounting with hose clamp.
- With retaining bracket BMF 21-HW-10 for pneumatic cylinders with tension link Ø4.3…17 mm and pneumatic cylinders with housing integrated drawbar (profile); profile width 10…17 mm.
- Functional principle: BMF retaining bracket
- Material PBTP
- GF30
- Ambient temperature: -25 to 70 °C
- Use: For magnetic field sensors BMF 305
- Additional features:
- Functional principle: BMF retaining bracket
- Scope of delivery: Fastening part|mounting bracket
- Material: PBTP|GF30
- Tightening torque 1.5 Nm
- Ambient temperature: -25 to 70 °C
- Application: With retaining bracket BMF 21-HW-8 for|Pneumatic cylinder with|Tie core diameter 4.3 17...6.5|mm.|With retaining bracket BMF 21-HW-11 for|Cylinder with piston diameter|8-80 mm.|Mounting with hose clamp.|With retaining bracket BMF 10-HW-10 for|Pneumatic cylinder with tension anchor|Ø4.3…17 mm and|Pneumatic cylinder with|Housing integrated drawbar|(profile)|21 mm.
- Mounting sensor: PT screw WN 1412 Ka 30x8
- Mounting bracket: Screwing parts at|retaining bracket BMF 21-HW-10|-8|-11
- Product type
Support bracket
- Type
BAM00LL
- Content
1 pc(s)
- Material
PBTP
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417908 BALLUFF BAM00LL Support bracket BAM00LL 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417908 BALLUFF BAM00LL Support bracket BAM00LL 1 pc(s)
Description
Our sensor holders can be combined with the mounting system BMS. The high-quality sensor holders are designed and tested for Balluff magnetic field sensors. They are characterized by precision and durability. Operating principle = BMF retaining bracket, application = With retaining bracket BMF 21-HW-8 for pneumatic cylinders with tension rod diameter 4.3...6.5 mm., With retaining bracket BMF 21-HW-11 for cylinders with piston diameter 8-80 mm. Mounting with hose clamp, With retaining bracket BMF 21-HW-10 for pneumatic cylinders with tension link Ø4.3.17 mm and pneumatic cylinders with housing-integrated draw bar (profile); profile width 10.17 mm., use = for magnetic field sensors BMF 305, material = PBTP GF30, ambient temperature = -25...70 °C.
