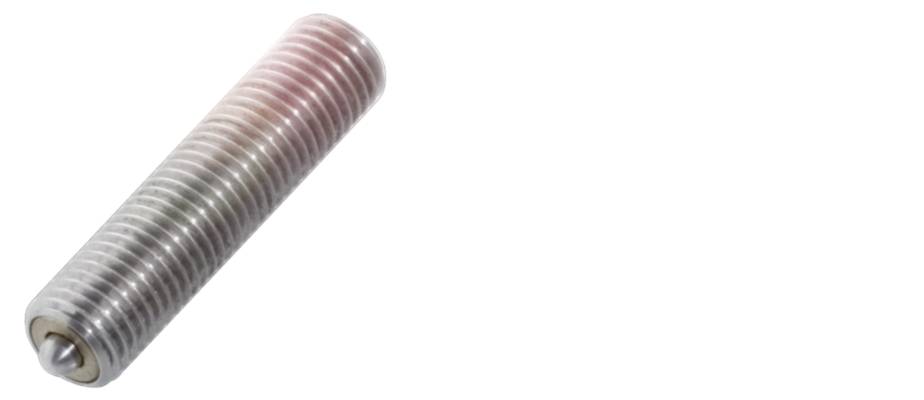

BALLUFF BAM01AZ Plunger probe BAM01AZ 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plunger probe
Type
BAM01AZ
Content
1 pc(s)
Length
35.00 mm
(Ø)
8 mm
Datasheet (PDF)
Highlights & Details
BALUFF BAM01AZ PLUNGER PROBE solutions
- Dimensions: Ø 8 x 35 mm
- Mounting: Screws M8
- Application: For inductive sensors BES M5
- For inductive sensors Ø5
- Material: Stainless steel
- Short description: Fixed stop Tube switch
Technical specifications
- Main features:Dimensions: Ø 8 x 35 mm
- Mounting: Screws M8
- Short description: Fixed stop Tube switch
- Material: Stainless steel
- Application: For inductive sensors BES M5
- For inductive sensors Ø5
- Additional features:
- Delivery: Fixed stop
- Application: For inductive sensors BES M5|for inductive sensors Ø5
- Material: Stainless steel
- Dimensions: Ø 8 x 35 mm
- Mounting: Screws M8
- Active surface, material: Stainless steel (1.4301)
- Mechanical life: 0.5 MIO. Switching cycles
- Clamp system: Screws
- Short description: Fixed stop Tube switch
- Striking force F max. 400 N
- Spring force 3 N
- Spring travel 2 mm
- Product type
Plunger probe
- Type
BAM01AZ
- Content
1 pc(s)
- Length
35.00 mm
- (Ø)
8 mm
- Material
Stainless steel
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417927 BALLUFF BAM01AZ Plunger probe BAM01AZ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417927 BALLUFF BAM01AZ Plunger probe BAM01AZ 1 pc(s)
Description
Our compact Pluger Probe offers rugged design for harsh applications. It is suitable for Ideal for welding devices and punching applications as well as for applications with controlled workpiece ejection. The complete set includes sensor, housing and springs. You can choose between different types of plunger and three spring voltages: The two-piece housing simplifies maintenance. Short description=fixed stop Tube switch, use=for inductive sensors BES MD5 for inductive sensors Ø5, material=stainless steel, dimension=Ø 8 x 35 mm, fixing=screws M8
