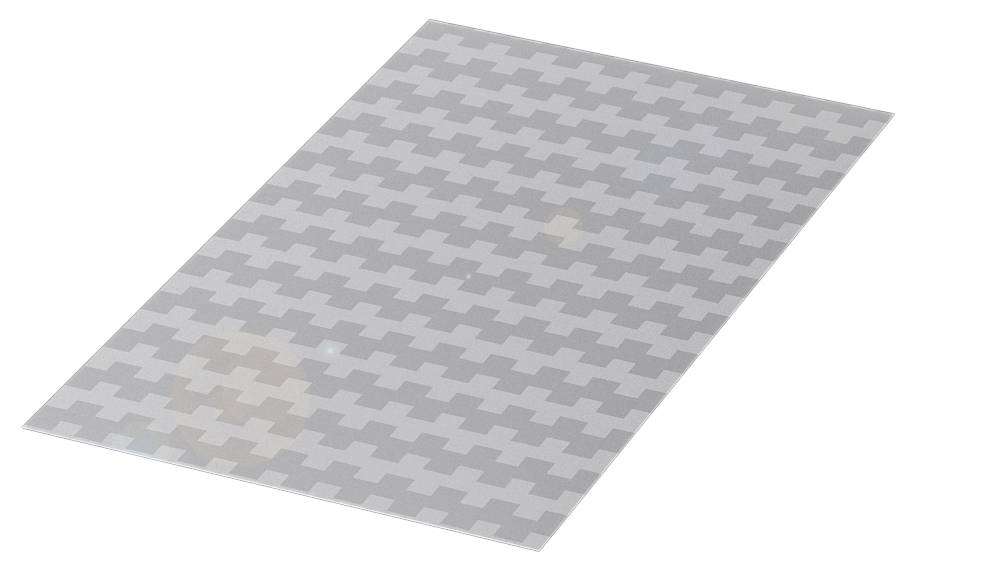

BALLUFF BAM01HF Reflection film BAM01HF 1 pc(s)
EAN:
Part number:
Item no:
Product type
Reflection film
Type
BAM01HF
Content
1 pc(s)
Length
0.50 mm
Width
200.00 mm
Datasheet (PDF)
Highlights & Details
Balluff BAM01HF reflectors and reflective films
- Dimensions 200 x 300 x 0.5 mm
- Use: For optoelectronic reflection light barriers
- For optoelectronic laser reflection light barriers
- Design: Reflective film, micro-pyramids
- Shape: Foil section
- rectangular
- Active area: 600.0 cm²
Technical specifications
- Main features:Dimension 200 x 300 x 0.5 mm
- Active area: 600.0 cm²
- Active surface, material: PMMA, rear coated Al
- Design: Reflective film, micro-pyramids
- Mounting: Self-adhesive
- Shape: Foil section
- rectangular
- Type of light: Non-polarized light, also for polarized light
- Ambient temperature -20...60 °C
- Use: For optoelectronic reflection light barriers
- For optoelectronic laser reflection light barriers
- Additional features:
- Design: Reflective film, micro-pyramids
- Use: For optoelectronic|reflective light barriers|for optoelectronic laser|reflective light barriers
- Active surface, material: PMMA, rear coated Al
- Housing material: Film
- Product type
Reflection film
- Type
BAM01HF
- Content
1 pc(s)
- Length
0.50 mm
- Width
200.00 mm
- Height
300.00 mm
- Enclosure material
Film
- Material
PMMA
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3417983 BALLUFF BAM01HF Reflection film BAM01HF 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417983 BALLUFF BAM01HF Reflection film BAM01HF 1 pc(s)
Description
The right reflector for every environment: Our round and square-shaped reflectors and reflective films are heat and chemical resistant. They are suitable for red light, white light, infrared and laser applications. Balluff reflectors are ideal for applications with BOS sensors. You can choose between different sizes and mounting options. Design=reflective film, micropyramids, use=for optoelectronic reflection light barriers for optoelectronic laser reflection light barriers, form=rectangular foil, dimension=200 x 300 x 0.5 mm, active surface=600.0 cm2, ambient temperature=-20...60 °C, active surface, material=PMMA, Back side coated Al, Material=Folie, Light Type=Non-polarized Light, also for polarized Light, Mounting=Self-adhesive
