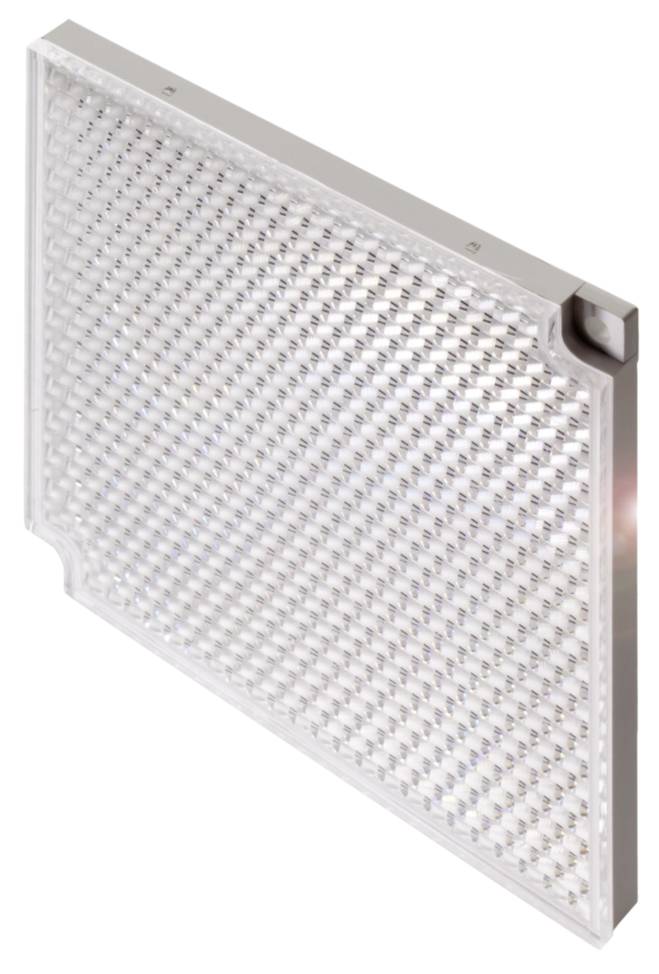

BALLUFF BAM01JN Square corner BAM01JN 1 pc(s)
EAN:
Part number:
Item no:
Product type
Square corner
Type
BAM01JN
Content
1 pc(s)
Length
9.20 mm
Width
100.00 mm
Datasheet (PDF)
Highlights & Details
Balluff BAM01JN reflectors and reflective films
- Dimensions 100 x 100 x 9.2 mm
- Use: For optoelectronic reflection light barriers
- Design: Corner of the dice 4 mm
- Shape: Square
- 2 mounting holes
- Active area: 92.5 cm²
Technical specifications
- Main features:Dimension 100 x 100 x 9.2 mm
- Active area: 92.5 cm²
- Active surface, material: PMMA
- Design: Corner of the dice 4 mm
- Mounting: Adhesive
- M3 screw
- Shape: Square
- 2 mounting holes
- Type of light: Non-polarized light, also for polarized light
- Ambient temperature -20...60 °C
- Use: For optoelectronic reflection light barriers
- Additional features:
- Design: Corner of the dice 4 mm
- Use: For optoelectronic|reflective light barriers
- Active surface, material: PMMA
- ABS casing material
- Product type
Square corner
- Type
BAM01JN
- Content
1 pc(s)
- Length
9.20 mm
- Width
100.00 mm
- Height
100.00 mm
- Enclosure material
Acrylonitrile butadiene styrene
- Material
PMMA
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3417993 BALLUFF BAM01JN Square corner BAM01JN 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417993 BALLUFF BAM01JN Square corner BAM01JN 1 pc(s)
Description
The right reflector for every environment: Our round and square-shaped reflectors and reflective films are heat and chemical resistant. They are suitable for red light, white light, infrared and laser applications. Balluff reflectors are ideal for applications with BOS sensors. You can choose between different sizes and mounting options. Design=cube corner 4 mm, use=for optoelectronic reflection light barriers, form=quadr2 mounting holes, dimensions=100 x 100 x 9.2 mm, active surface=92.5 cm2, ambient temperature=-20...60 °C, active surface, material=PMMA, Material = ABS, light type = non-polarized light, also for polarized light, attachment = adhesive screw M3
